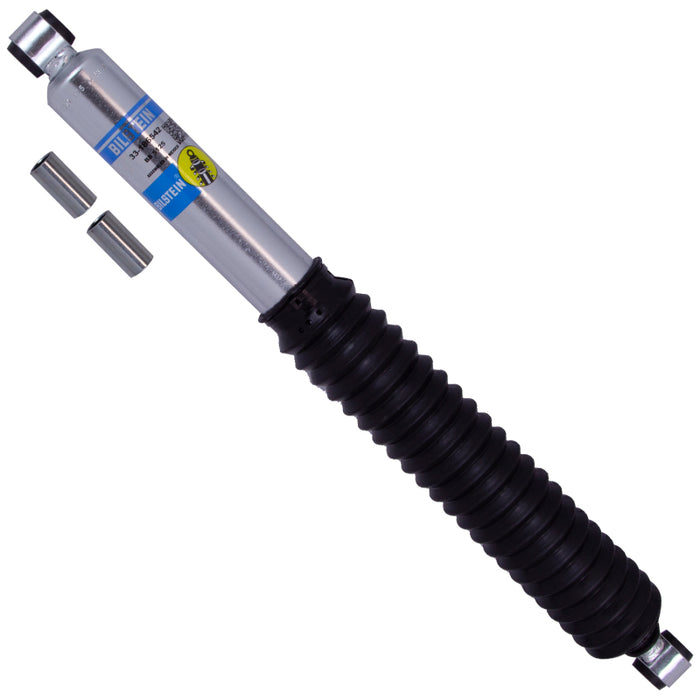

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Ford Bronco 1977-1966, Jeep Cherokee 1983-1981, CJ5 1983-1959, CJ5A 1968-1966, CJ7 1986-1976, Grand Wagoneer 1991-1984, J10 1988-1981, J20 1988-1981, Toyota Pickup 1983-1979
Specifications:
- Position Front and Rear
- Collapsed Length (IN)15.12
- Extended Length (IN)24.35
- Collapsed Length (MM)384.0
- Extended Length (MM)618.5
- Compression @0.52m/s700
- Rebound @0.52m/s2550
- FinishZinc Plated
- ReservoirNo
- Body DesignSmooth Body (Non-Coilover)
- Body Diameter46mm
- Spring Seat IncludedNo
- Adjustable DampingNon-Adjustable
