Technical Specifications
Transverse Flow design.

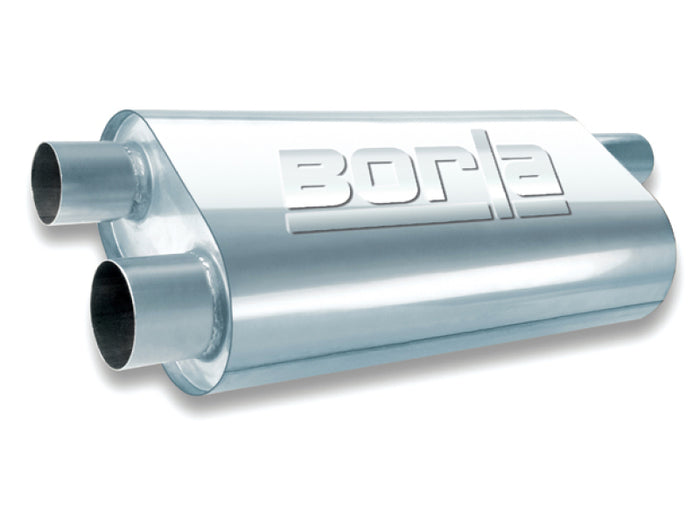

Transverse flow mufflers were originally designed for GM F-Body Camaros and Firebirds.
On these vehicles they were mounted behind the rear axle and were parallel to the axle.
This muffler can also be used to create custom systems on other vehicles.
Single 2.5" Offset Inlet/ Dual 2.5" Offset Outlets.
The inlet and one outlet are on one end of the muffler, and the second outlet is on the opposite end.
Reversible design for installation flexibility.
High-quality T-304 austenitic stainless steel will never rust. 100% welded construction for strength.
High-temperature continuous-filament fiber (CFF) acoustic material for sound control.
Natural mill finish can be brushed or polished prior to installation.
| Muffler Config | Muffler Shape | Muffler Tubing Size | Case Dimensions | Muffler Oal |
|---|---|---|---|---|
| Transverse | Oval | 2.5" Inlet/ Dual 2.5" Outlet | 19" X 6" X 10.25" | 24" |
Fitment
Specialty Muffler - Transverse Flow - Single 2.5" Offset Inlet/ Dual 2.5" Offset Outlets (One Outlet On Same End As Inlet And One Outlet On Opposite End) 6" x 10.25" Oval x 19" Long Body 24" Overall Length.
