Bypass Actuator Kit #15001 for Edelbrock-Supercharged Scion FR-S, Subaru BRZ, Toyota 86 with older 1556/15560 Supercharger Kits

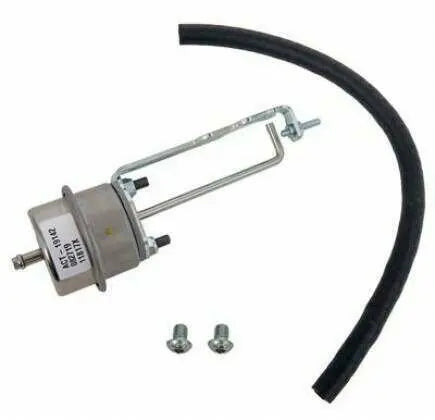

The Bypass Actuator Kit #15001 has been developed for owners of Edelbrock-supercharged Scion FR-S, Subaru BRZ and Toyota 86 vehicles equipped with older #1556 and #15560 supercharger systems who have experienced an actuator fail or who would like to proactively replace the component before a failure occurs. This bypass actuator valve is a bolt-on replacement that requires no other modification. Bypass Actuator Kit #15001 includes a new vacuum actuator, mounting bracket, hardware and detailed installation instructions.
FEATURES AND BENEFITS
- For Scion FR-S, Subaru BRZ ands Toyota 86 owners with older 1556/15560 Supercharger Kit; Direct bolt-on replacement for original bypass actuator valve; New bracket Included; Hardware included; Installation instructions provided
SPECS
| Manufacturer | Edelbrock |
|---|---|
| Application | Application Specific |
| UPC | 00085347150014 |
| Quantity | Sold Individually |
| Terminal Gender | Male |
| Terminal Type | Single Barb (Rear) |
| Terminal Quantity | 1 |
| Availability Note | Available to Order |
| Warranty | 36 Months |
| Recommended Use | For Part #1556, #15560 |
| Connector Color | Natural |
| Main Port Inside Diameter | 7.5 mm |
| Main Port Outside Diameter | 7.8 mm |
| Mounting Hole Quantity | 2 |
| Hazardous Materials Warning | WARNING: This product can expose you to Epichlorohydrin and Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Port Quantity | 1 |
