Turbine Housing Kit, Garrett G35, STANDARD ROTATION, 0.83 A/R O/V, V-Band In/Out, P/N: 740902-0103

$782.31
$782.31
$0
Sold out
Quantity must be 1 or more
Product Description:

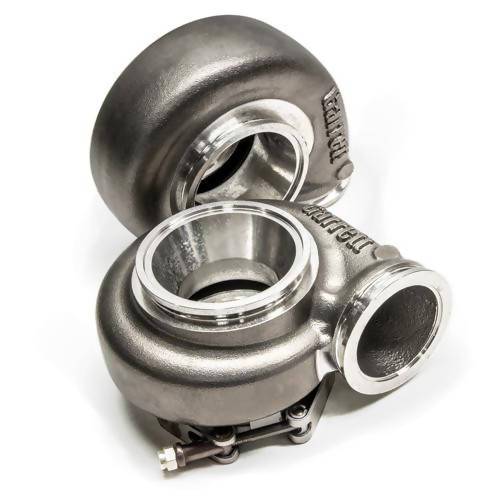

Garrett® G35 standard turbine housing kit, 0.83 A/R O/V, V-Band In/Out.

Product Features:

  • V-band configurations have 360 degree clockability
  • Stainless steel turbine housings for temperatures up to 1050°C | 1922°F
  • 3" (76.2mm) V-band inlet (same as GTX)
  • 3.5" (90.16mm) V-band outlet (same as GTX)
  • V-band 0.61 and 0.83 configurations available

Product Specifications:

  • Turbine Wheel Inducer: 68mm
  • Turbine Wheel Exducer: 62mm
  • Turbine Wheel Trim: 84

Installation Hardware:

  • Inlet V-Band Flange (For Turbo Manifold): ATP-FLS-350
  • Out V-Band Flange (For Down-pipe): ATP-FLS-351

Garrett Part Number:

  • 740902-0103
