Designed specifically for Toyota 2JZ engines (both VVT-i and non-VVT-i), the Haltech Elite 2500 IGN-1A Terminated Harness Kit provides a comprehensive engine management solution for performance builds and conversions. This kit includes a terminated engine harness tailored for IGN-1A coils, combined with the powerful Elite 2500 ECU offering advanced tuning, race functions, and full integration with the NSP tuning software.
Built for serious tuners, the package supports a wide range of fuel types, boost control strategies, and real-time data logging capabilities.
Note: For competition/off-road use only. IGN-1A coils not included—please order 6 × HT-020114 separately.
Key Features
-
Purpose-Built for Toyota 2JZ Engines: Supports both VVT-i and non-VVT-i variants; designed for manual transmission applications only.
-
High Output Ignition Support: Includes a dedicated pre-wired ignition harness for IGN-1A coils (coils not included).
-
Comprehensive Engine Management:
-
Drive-by-wire support (requires throttle conversion for factory ETCS-i units)
-
Flex fuel tuning and closed-loop O2 control
-
Dual channel knock control and high-speed logging
-
Variable camshaft and idle control
-
-
Race-Ready Functionality:
-
Anti-lag, traction control, rolling launch, and flat shift
-
Up to 6 stages of nitrous control
-
4D closed-loop boost control with learning
-
Data logging via onboard memory and laptop
-
-
System Expandability: Dual CAN bus communication for Haltech dashes and CAN devices
Vehicle Applications
-
Engine Compatibility: Toyota 2JZ-GTE / 2JZ-GE (VVT-i and non-VVT-i)
-
Transmission Requirement: Manual transmission only
-
Throttle Note: ETCS-i electronic throttle bodies require conversion to mechanical throttle or use of a Throttle Convert Kit

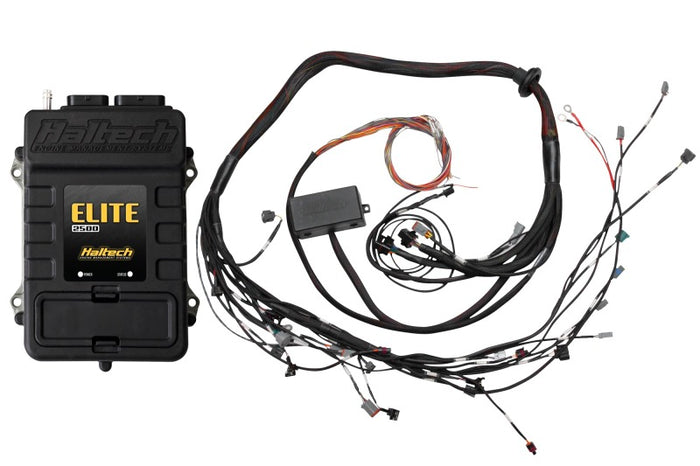

Kit Contents
-
Haltech Elite 2500 ECU with DBW and race functionality
-
Terminated engine harness with fuse block and firewall grommet
-
Pre-wired IGN-1A coil ignition harness
-
USB programming cable
Note: IGN-1A coils (HT-020114) are not included and must be purchased separately.
