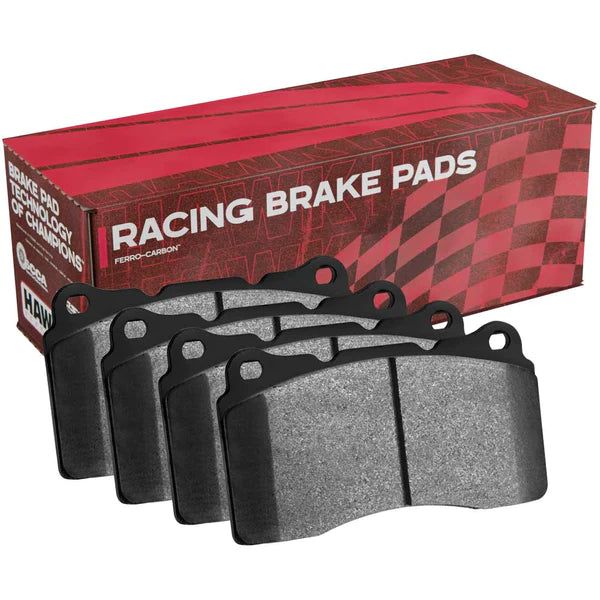

Hawk Performance Blue 9012
Designed as an entry level endurance compound, there's nothing second-string about Hawk's Blue 9012 race compound. Easier to bed in and delivering excellent pad and rotor life, Blue 9012 is a medium torque pad developed specifically for Road, Rally and Circle Track racing.
Hawk Performance Blue 9012 Compound Characteristics:
- Endurance Compound
- Medium Friction
- Intermediate Initial Bite
- Increased Mid-Mu Characteristics
- 250-1000 Deg F Operating Temperature Range
- 350-800 Deg F Optimal Temperature Range
Hawk Race Compound Chart
Hawk Brake Pad Installation Procedure
- Install Brake pads properly. Be sure pads are securely positioned in the caliper.
- Flush system with fresh brake fluid.
- Check all hydraulic parts for excess wear and tear.
- Check disc for proper thickness, parallelism, and lateral run-out.
- Check disc for scoring or grooves over .012"" depth. If either applies, resurfacing or replacement is required.
- If disc does not need resurfacing then contamination from the previous brake pads must be removed. Sand discs with Garnet sandpaper using moderate pressure. Use soap and water to clean off disc surface after sanding and machining. Discs should be free and clear of oil, grease, and brake fluid
- Inspect calipers for freedom of movement. Lubricate where necessary
Hawk Brake Pad Bedding Procedure - Motorsports Pads
- After reaching medium speed engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat four or five times.
- At higher speeds engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat five times.
- At or near race speed engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat three times. Allow a few seconds between brake engagements while car is in motion.
- Do not hold brake pedal. Park car for approximately 20 minutes or until brake rotors are completely cool to the touch.
- If during the above steps the brake pedal becomes soft or brake fade is noticed, park the car immediately for approximately 20 minutes. Do not hold brake pedal.
Important Reminders when Burnishing or Bedding Brake Pads
- Do not attempt to use badly worn or damaged rotors with new brake pads.
- Do not drag brakes while car is moving during break-in procedure.
- Do not engage pedal while car is stopped at any time following the break-in procedure.
- Upon completing the procedure, allow the brake system to completely cool before racing.
- Applying the pedal a few times before the start of the race will allow the brake pads to heat up before attempting to reach race speeds.
- Clean a used rotor surface with fine sand paper or steel wool, rinse with water, dry and install before bedding new pads.
- Some forms of racing do not allow time for the proper break-in procedure to be performed. However, it is still very important to attempt to perform at least the core of the procedure: Build up heat slowly and allow the system to completely cool down before racing if possible.
This part is for the Front of:
- 2004 Ford Mustang SVT Cobra 4.6L
- 2004 Ford Mustang Mach I 4.6L
- 2004 Ford Mustang Cobra
- 2003 Ford Mustang SVT Cobra 4.6L
- 2003 Ford Mustang SVT Cobra 10th Anniversary 4.6L
- 2003 Ford Mustang Mach I 4.6L
- 2003 Ford Mustang Cobra
- 2002 Ford Mustang Cobra
- 2001 Ford Mustang SVT Cobra 4.6L
- 2001 Ford Mustang GT Bullitt 4.6L
- 2000 Ford Mustang Cobra
- 1999 Ford Mustang SVT Cobra 5.0L
- 1998 Ford Mustang SVT Cobra 5.0L
- 1997 Ford Mustang SVT Cobra 4.6L
- 1996 Ford Mustang SVT Cobra 4.6L
- 1996 Chevrolet Corvette Grand Sport 5.7L
- 1996 Chevrolet Corvette Collector's Edition 5.7L
- 1996 Chevrolet Corvette Base 5.7L
- 1996 Chevrolet CORVETTE
- 1995 Ford Mustang SVT Cobra 4.6L
- 1995 Chevrolet Corvette ZR-1 5.7L
- 1995 Chevrolet Corvette Indianapolis 500 Pace Car 5.7L
- 1995 Chevrolet Corvette Base 5.7L
- 1995 Chevrolet Corvette
- 1994 Ford Mustang SVT Cobra 4.6L
- 1994 Chevrolet Corvette ZR-1 5.7L
- 1994 Chevrolet Corvette Base 5.7L
- 1994 Chevrolet Corvette
- 1993 Chevrolet Corvette ZR-1 5.7L
- 1993 Chevrolet Corvette Base 5.7L
- 1993 Chevrolet Corvette 40th Anniversary Edition 5.7L
- 1993 Chevrolet Corvette
- 1992 Pontiac Firebird Heavy Duty
- 1992 Chevrolet Corvette ZR-1 5.7L
- 1992 Chevrolet Corvette Base 5.7L
- 1992 Chevrolet Corvette
- 1992 Chevrolet Camaro Heavy Duty
- 1992 Chevrolet Camaro 5.7L Performance Package
- 1992 Chevrolet Camaro 5.0L Performance Package
- 1992 Chevrolet Camaro 3.1L Performance Package
- 1991 Pontiac Firebird Heavy Duty
- 1991 Chevrolet Corvette ZR-1 5.7L
- 1991 Chevrolet Corvette Base 5.7L
- 1991 Chevrolet Corvette
- 1991 Chevrolet Camaro Heritage Edition 5.0L Performance Package
- 1991 Chevrolet Camaro Heritage Edition 3.1L Performance Package
- 1991 Chevrolet Camaro Heavy Duty
- 1991 Chevrolet Camaro 5.7L Performance Package
- 1991 Chevrolet Camaro 5.0L Performance Package
- 1990 Pontiac Firebird Heavy Duty
- 1990 Chevrolet Corvette ZR-1 5.7L
- 1990 Chevrolet Corvette Base 5.7L
- 1990 Chevrolet Corvette
- 1990 Chevrolet Camaro Heavy Duty
- 1990 Chevrolet Camaro 5.7L Performance Package
- 1990 Chevrolet Camaro 5.0L Performance Package
- 1990 Chevrolet Camaro 3.1L Performance Package
- 1989 Pontiac Firebird Heavy Duty
- 1989 Chevrolet Corvette Base 5.7L
- 1989 Chevrolet Corvette
- 1989 Chevrolet Camaro Heavy Duty
- 1989 Chevrolet Camaro 5.7L Performance Package
- 1989 Chevrolet Camaro 5.0L Performance Package
- 1989 Chevrolet Camaro 2.8L Performance Package
- 1988 Pontiac Firebird Heavy Duty
- 1988 Chevrolet Corvette Base 5.7L
- 1988 Chevrolet Corvette 35th Anniversary Edition 5.7L
- 1988 Chevrolet Corvette
- 1988 Chevrolet Camaro Heavy Duty
- 1988 Chevrolet Camaro 5.7L Performance Package
- 1988 Chevrolet Camaro 5.0L Performance Package
- 1988 Chevrolet Camaro 2.8L Performance Package
This part is for the Rear of:
- 1996 Chevrolet Corvette Grand Sport
- 1996 Chevrolet Corvette Base
- 1995 Chevrolet Corvette ZR-1
- 1995 Chevrolet Corvette Indianapolis 500 Pace Car
- 1995 Chevrolet Corvette Base
- 1994 Chevrolet Corvette ZR-1
- 1994 Chevrolet Corvette Base
- 1993 Chevrolet Corvette ZR-1
- 1993 Chevrolet Corvette Base
- 1993 Chevrolet Corvette 40th Anniversary Edition
- 1992 Chevrolet Corvette ZR-1
- 1992 Chevrolet Corvette Base
- 1991 Chevrolet Corvette ZR-1
- 1991 Chevrolet Corvette Base
- 1990 Chevrolet Corvette ZR-1
- 1990 Chevrolet Corvette Base
- 1989 Chevrolet Corvette Base
