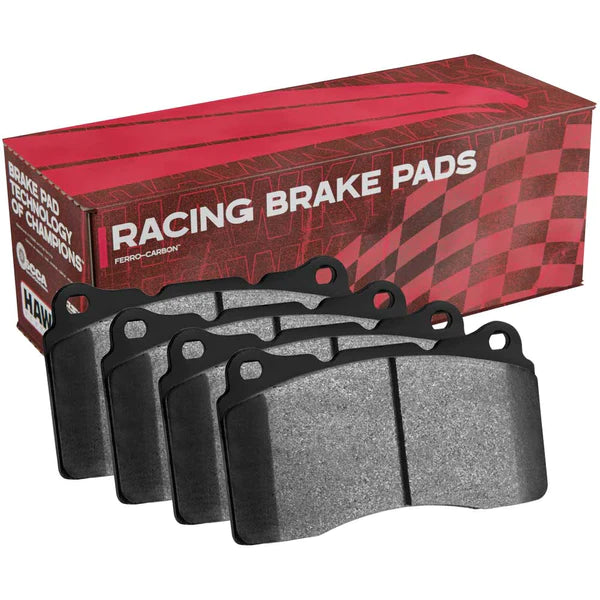

Hawk Performance Blue 9012
Designed as an entry level endurance compound, there's nothing second-string about Hawk's Blue 9012 race compound. Easier to bed in and delivering excellent pad and rotor life, Blue 9012 is a medium torque pad developed specifically for Road, Rally and Circle Track racing.
Hawk Performance Blue 9012 Compound Characteristics:
- Endurance Compound
- Medium Friction
- Intermediate Initial Bite
- Increased Mid-Mu Characteristics
- 250-1000 Deg F Operating Temperature Range
- 350-800 Deg F Optimal Temperature Range
Hawk Race Compound Chart
Hawk Brake Pad Installation Procedure
- Install Brake pads properly. Be sure pads are securely positioned in the caliper.
- Flush system with fresh brake fluid.
- Check all hydraulic parts for excess wear and tear.
- Check disc for proper thickness, parallelism, and lateral run-out.
- Check disc for scoring or grooves over .012"" depth. If either applies, resurfacing or replacement is required.
- If disc does not need resurfacing then contamination from the previous brake pads must be removed. Sand discs with Garnet sandpaper using moderate pressure. Use soap and water to clean off disc surface after sanding and machining. Discs should be free and clear of oil, grease, and brake fluid
- Inspect calipers for freedom of movement. Lubricate where necessary
Hawk Brake Pad Bedding Procedure - Motorsports Pads
- After reaching medium speed engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat four or five times.
- At higher speeds engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat five times.
- At or near race speed engage brake pedal to slow car without coming to a complete stop. Release pedal quickly and do not drag brakes. Repeat three times. Allow a few seconds between brake engagements while car is in motion.
- Do not hold brake pedal. Park car for approximately 20 minutes or until brake rotors are completely cool to the touch.
- If during the above steps the brake pedal becomes soft or brake fade is noticed, park the car immediately for approximately 20 minutes. Do not hold brake pedal.
Important Reminders when Burnishing or Bedding Brake Pads
- Do not attempt to use badly worn or damaged rotors with new brake pads.
- Do not drag brakes while car is moving during break-in procedure.
- Do not engage pedal while car is stopped at any time following the break-in procedure.
- Upon completing the procedure, allow the brake system to completely cool before racing.
- Applying the pedal a few times before the start of the race will allow the brake pads to heat up before attempting to reach race speeds.
- Clean a used rotor surface with fine sand paper or steel wool, rinse with water, dry and install before bedding new pads.
- Some forms of racing do not allow time for the proper break-in procedure to be performed. However, it is still very important to attempt to perform at least the core of the procedure: Build up heat slowly and allow the system to completely cool down before racing if possible.
This part is for the Front of:
- 1987 Mitsubishi Precis
- 1980 TOYOTA Cressida
- 1980 Toyota Cressida
- 1980 TOYOTA Corona
- 1980 Toyota Corona
- 1980 Nissan 810
- 1979 TOYOTA Pickup
- 1979 Toyota Pickup
- 1979 Toyota Cressida
- 1979 TOYOTA Corona
- 1979 Toyota Corona
- 1979 Nissan 810
- 1979 Nissan 620 Pickup
- 1979 NISSAN 620 Pickup
- 1979 Nissan 620
- 1978 TOYOTA Pickup
- 1978 Toyota Pickup
- 1978 TOYOTA Cressida
- 1978 Toyota Cressida
- 1978 TOYOTA Corona
- 1978 Toyota Corona
- 1978 Nissan 810
- 1978 NISSAN 620 Pickup
- 1978 Nissan 620 Pickup
- 1978 Nissan 620
- 1978 NISSAN 280Z
- 1978 Nissan 280Z
- 1977 TOYOTA Corona
- 1977 Toyota Corona
- 1977 Nissan 810
- 1977 Nissan 620 Pickup
- 1977 NISSAN 620 Pickup
- 1977 Nissan 620
- 1977 NISSAN 280Z
- 1977 Nissan 280Z
- 1976 TOYOTA Mark II
- 1976 Toyota Mark II
- 1976 Toyota Corona
- 1976 TOYOTA Corona
- 1976 Nissan 620
- 1976 NISSAN 280Z
- 1976 Nissan 280Z
- 1975 TOYOTA Mark II
- 1975 Toyota Mark II
- 1975 Toyota Corona
- 1975 TOYOTA Corona
- 1975 Nissan 620
- 1975 NISSAN 280Z
- 1975 Nissan 280Z
- 1975 Nissan 260Z
- 1974 TOYOTA Mark II
- 1974 Toyota Mark II
- 1974 Toyota Corona
- 1974 TOYOTA Corona
- 1974 Nissan 260Z
- 1973 TOYOTA Mark II
- 1973 Toyota Mark II
- 1973 Nissan 240Z
- 1972 TOYOTA Mark II
- 1972 Toyota Mark II
- 1972 TOYOTA Crown Station Wagon
- 1972 Toyota Crown Station Wagon
- 1972 Toyota Crown MS-60, MS-70
- 1972 Nissan 240Z
- 1971 Toyota Crown Station Wagon
- 1971 TOYOTA Crown Station Wagon
- 1971 Toyota Crown MS-60, MS-70
- 1971 Toyota Crown 2300
- 1971 Toyota Crown 2000
- 1971 Nissan 240Z
- 1970 Toyota Crown Station Wagon
- 1970 TOYOTA Crown Station Wagon
- 1970 Toyota Crown MS-60, MS-70
- 1970 Toyota Crown 2300
- 1970 Toyota Crown 2000
- 1970 Nissan 240Z
- 1969 TOYOTA Crown Station Wagon
- 1969 Toyota Crown Station Wagon
- 1969 Toyota Crown MS-60, MS-70
- 1969 Toyota Crown 2300
- 1969 Toyota Crown 2000
- 1968 Toyota Crown Station Wagon
- 1968 TOYOTA Crown Station Wagon
- 1968 Toyota Crown MS-60, MS-70
- 1968 Toyota Crown 2300
- 1968 Toyota Crown 2000
