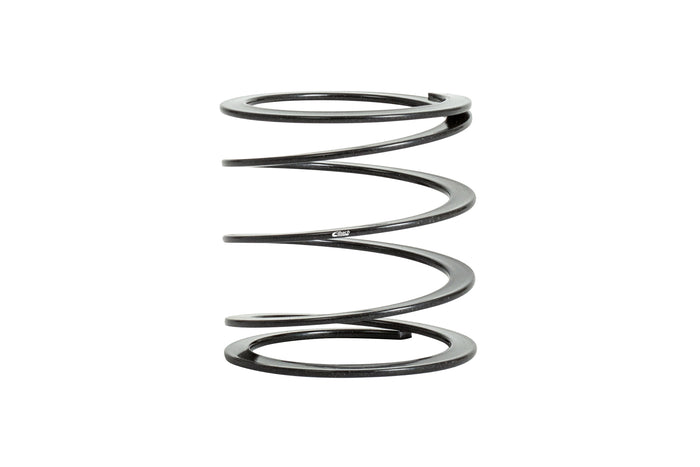

Eibach HELPER Springs feature flat-wire design for minimal interferece of main spring rate and travel to maintain spring position at full suspension droop.
- Keeps Main Spring Seated When Suspension is Unloaded
- Available for Most Popular Spring Diameters
- Each Spring Individually Tested
- Flat Spring Wire for Maximum Travel and Minimum Block Height
- Single Spring
Helper Spring
| Length (in) | Diameter (in) | Rate (lbs/in) | Block Height (in) | Travel (in) | Block Load (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|
| 3.00 | 2.50 I.D. | 11 | 0.50 | 2.52 | 28.00 | 0.30 |
| Length (mm) | Diameter (mm) | Rate (kg/mm) | Block Height (mm) | Travel (mm) | Block Load (N) | Weight (kg) |
| 76.00 | 64.00 I.D. | 0.21 | 13.00 | 64.00 | 126.00 | 0.12 |
