Based on years of data gathered during tests, research and development, HKS was able to come up with a product that matches the requirements of the Civic Type R. Carefully selected intercooler core size with optimized piping design combines air cooling efficiency and increased volume at the highest level.
Heat management is a key area in obtaining maximum performance from the Civic Type-R. This intercooler kit features enlarged core and optimized piping design for maximum cooling efficiency.
Features:
- Intercooler Core
- Newly developed 100mm wide core delivers double the volume of stock coller providing outstanding cooling efficiency.

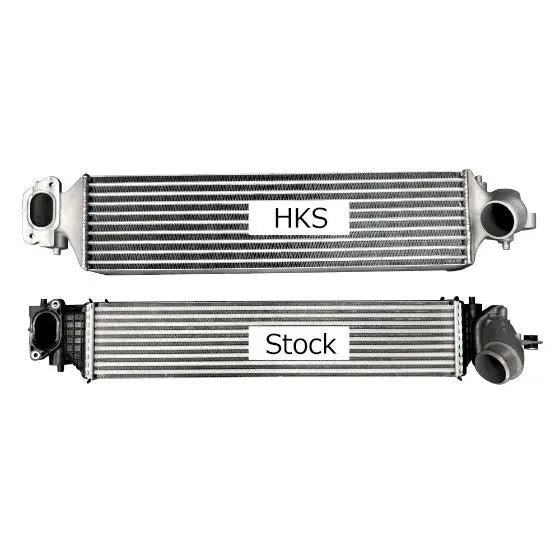

- Core Size:
- Stock: 680x143x64
- HKS: 695x178x100
- Installation does not require any serious modification.
- Only a rubber part that comes in contact with the intercooler requires minor modification.
- Stock side tank parts made of plastic were replaced with smooth aluminum piping layout to reduce restriction and improve air flow.
NOT CARB-APPROVED. ILLEGAL TO USE OR INSTALL IN CALIFORNIA. IF YOU LIVE IN CA, WE CANNOT SHIP YOU THIS ITEM AND YOU WILL BE CHARGED A 10% CANCELLATION FEE IF YOU ORDER. PLEASE LOOK FOR OTHER PRODUCTS WITH CARB APPROVAL.
