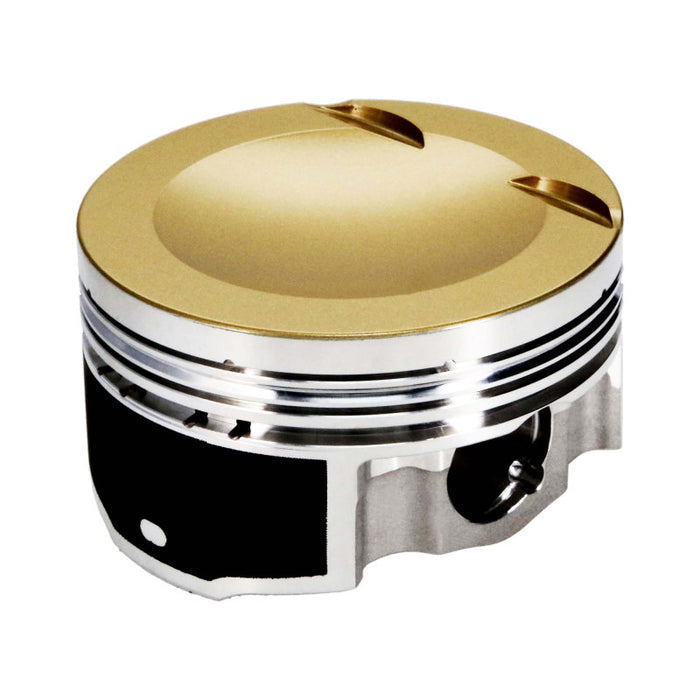

JE Ultra Series Audi 2.5L TFSI Piston Kit – 83.00 Mm Bore – 1.165 In. CH, -8.10 CC
JE Pistons Ultra Series pistons for sport compact and euro applications combine all of the best, most desirable piston features, such as thermal barrier crown coating, lateral gas ports, thick-wall wrist pins, and a revolutionary new forging technology for the ultimate in strength. Premium, gas-nitrided carbon steel rings are included.
Specifications:
| Piston Series | JE Ultra Series |
|---|---|
| Cylinder Head | R5 TFSI 20V |
| Bore Diameter | 83.00 MM |
| Piston Head Type | Dish |
| Compression Height | 1.165 IN |
| Piston Volume | -8.10 CC |
| Piston Material | 2618 |
| Forging Type | FSR |
| Piston Average Weight | 304 GR |
| Ring Set Included | Yes |
| Top Compression Ring Thickness | 0.0395 IN |
| Second Compression Ring Thickness | 0.0480 IN |
| Oil Ring Thickness | 0.111 IN |
| Wrist Pin Material | 9310 Nickel Carbon Steel Alloy |
| Wrist Pin Length | 2.250 IN |
| Wrist Pin Wall Thickness | 0.230 IN |
| Engine Detail | 2.5L TFSI TT RS 20V |
