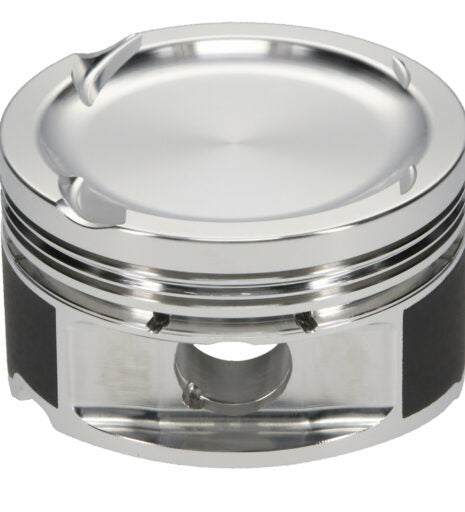

JE Pistons Volkswagen 2.0T TSI Piston Kit – 83.00 Mm Bore – 1.165 In. CH, -7.80 CC
JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Specifications :
| Piston Series | JE Pistons |
|---|---|
| Cylinder Head | 2.0 TSI |
| Bore Diameter | 83.00 MM |
| Piston Head Type | Dish |
| Compression Height | 1.165 IN |
| Piston Volume | -7.80 CC |
| Piston Material | 2618 |
| Piston Quantity | 4 |
| Forging Type | Round |
| Ring Set Included | Yes |
| Top Compression Ring Thickness | 0.0400 IN |
| Second Compression Ring Thickness | 0.0480 IN |
| Oil Ring Thickness | 0.111 IN |
| Wrist Pin Material | 5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length | 2.250 IN |
| Wrist Pin Wall Thickness | 0.150 IN |
| Engine Detail | 2.0T TSI 2013-2015 22 mm Pin |
