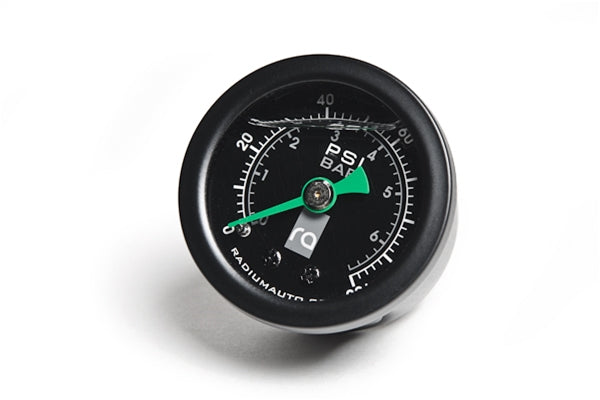

This high-accuracy fuel pressure gauge is suitable for all fueling applications. It features an acrylic lens with a silicone filled dial that reads from 0 to 100psi (0 to 6.9 BAR) with +/- 2% accuracy. The silicone fluid prevents the needle from vibrating for easy pressure readings. The internal bubble is normal. Rugged stainless 1-5/8" OD steel case (1-3/4" OD bezel) with nickel plated male 1/8" NPT fitting. Available with black bezel and housing only.
NOTES:
1. The internal silicone bubble is normal.
2. Overpressurizing can permanently misalign the needle calibration.
3. PTFE thread sealant paste should always be used on NPT threads.
Elite Race Fab also offers different Guages as well as Adapters, see products below:
Guages:
- Fuel Pressure Gauge 0-100psi: Linke here
- Fuel Pressure Gauge with 8AN ORB Adapter: Link Here
- Fuel Pressure Gauge with 6AN Inline Adapter: Link Here
- Fuel Pressure Gauge with 8AN ORB Adapter, 90deg: Link Here
- Fuel Pressure Gauge with 90deg Adapter: Link Here
Adapters:
- 14-0332 1/8NPT Male to Female, 90Deg
- 14-0343 6AN ORB to 1/8NPT Female
- 14-0119 8AN ORB to 1/8NPT Female
- 14-0148-06 Inline 6AN to 1/8NPT Female
- 14-0148-08 Inline 8AN to 1/8NPT Female
- 14-0148-10 Inline 10AN to 1/8NPT Female
