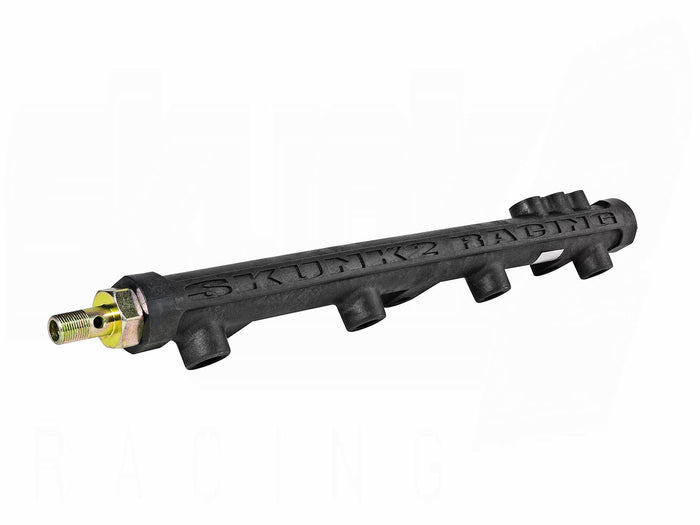

The Skunk2 Composite Fuel Rail for Honda B-Series engines is engineered for racers and performance enthusiasts seeking superior fuel delivery, strength, and thermal protection. Made from a proprietary carbon-impregnated aerospace thermo-polymer composite, this advanced material is 33% lighter, 60% stronger, and operates up to 100°F cooler than traditional aluminum fuel rails.
Unlike aluminum designs that can transfer excessive heat to the fuel, Skunk2’s composite construction effectively insulates against both radiant and conductive heat, keeping fuel temperatures lower and improving combustion efficiency. The result is enhanced horsepower, torque, and consistent performance under demanding conditions.
Designed with large 0.625-inch internal bores, the Composite Fuel Rail ensures superior fuel injector pulsation dampening and smooth, unrestricted fuel flow. Each rail includes integrated -8 AN inlet and outlet ports, OEM fuel pressure regulator provisions, and a 1/8-inch NPT fuel pressure port, offering full compatibility with both OEM and custom fuel systems. Tested to support up to 1,200 horsepower, this system is suitable for both pump and race fuels, including alcohol blends.
Key Features:
-
Supports up to 1,200 HP for high-performance applications
-
Carbon-impregnated aerospace thermo-polymer composite construction
-
33% lighter and 60% stronger than aluminum
-
Operates up to 100°F cooler than conventional designs
-
Improved heat insulation reduces fuel temperature and increases power
-
0.625-inch internal bores for superior flow and injector pulsation dampening
-
Integrated -8 AN inlet and outlet for flexible fuel line setup
-
Includes OEM fuel pressure regulator provisions
-
Features 1/8-inch NPT port for fuel pressure gauge or sensor
-
Compatible with all pump and race fuels, including alcohol
Technical Specifications:
-
Material: Carbon-impregnated aerospace thermo-polymer composite
-
Operating Temperature: Up to 100°F cooler than aluminum
-
Weight: 33% lighter than aluminum equivalent
-
Strength: 60% stronger than aluminum equivalent
-
Internal Bore: 0.625-inch smooth radius-cut fuel injector outlets
-
Fuel Compatibility: Pump gas, race fuel, ethanol, alcohol
-
Connections: -8 AN inlet/outlet, 1/8” NPT fuel pressure port
-
Max Supported Power: Up to 1,200 HP
Vehicle Fitment:
Compatible with:
-
Honda B16A/B Engines
-
Honda B17A Engines
-
Honda B18C Engines
Applications include:
-
Civic (B-Series Swapped Models)
-
Integra (B17A/B18C)
Included:
-
(1) Composite Fuel Rail
-
(1) Hardware & Fitting Kit
-
(1) Installation Guide
