Paddle Blade Pusher Heat Exchanger Or Oil Cooler Fans
Description :

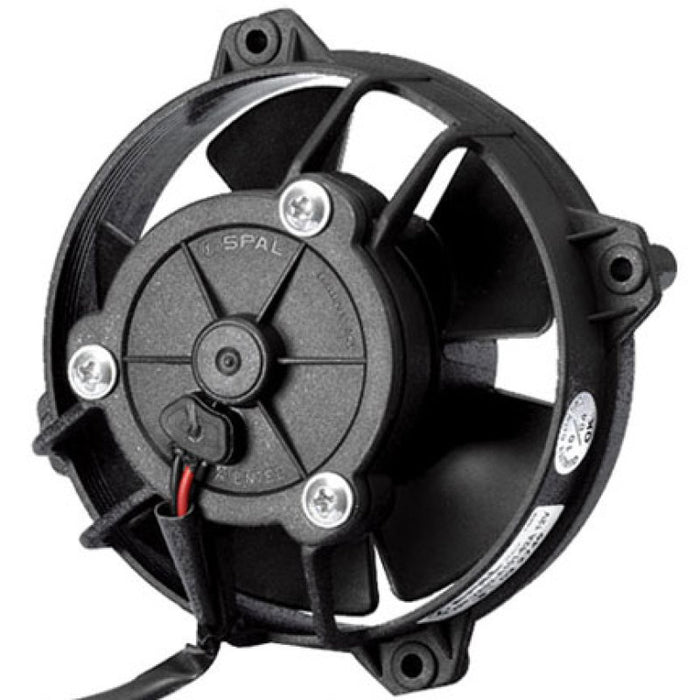

Spal's low profile electric fan for heat exchangers or oil coolers. You can use Spal's 30130013 or Maradyne's M0912T push in mounting pins. For CBR and Long Tru-Cool oil coolers, the Spal 30130013 push through pins work better. Long Tru-Cool can only fit Spal's 1/16" pins and they go in at about a 45° angle.
Specifications :
- 5 Paddle blades
- Pusher
- 124 CFM at '0' static pressure
- 12 Volt
- 4" Diameter
- 2" Thick
- 4 Bolt 3-1/4" x 3-1/4" pattern
- 3/16" Mounting holes
- 1/4" Blade terminals
