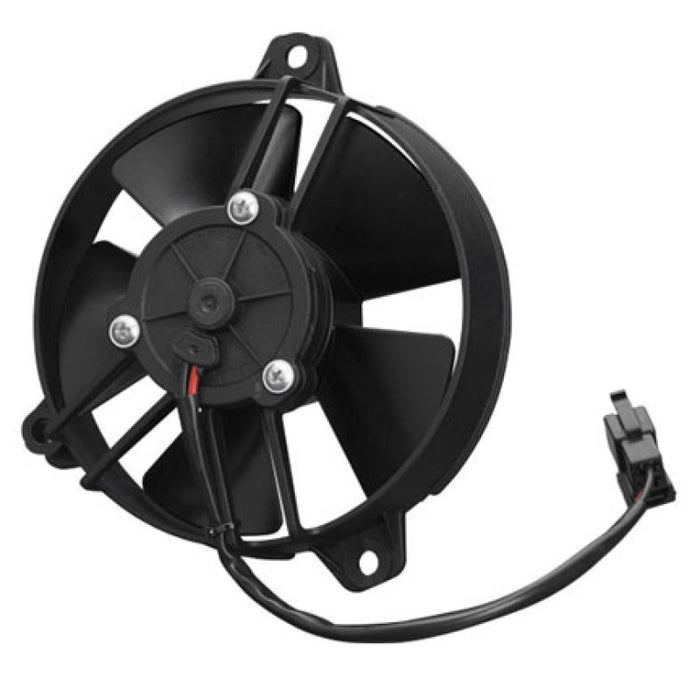

Paddle Blade Pusher Heat Exchanger Or Oil Cooler Fans
Description
Spal's low profile electric fan for heat exchangers or oil coolers. You can use Spal's 30130013 (with washers) or Maradyne's M0912T push in mounting pins.
For CBR and Long Tru-Cool oil coolers, the Spal 30130013 push through pins work better. Long Tru-Cool can only fit Spal's 1/16" pins and they go in at about a 45° angle.
Specifications :
- 5 Paddle blades
- Pusher
- 313 CFM at '0' static pressure
- 12 Volt
- 5-1/4" Diameter
- 2-1/4" Thick
- 3 Bolt asymmetrical pattern
- 1/4" Mounting holes
- 1/4" Blade terminals
