Straight Blade Puller Heat Exchanger Or Oil Cooler Fans
Description :

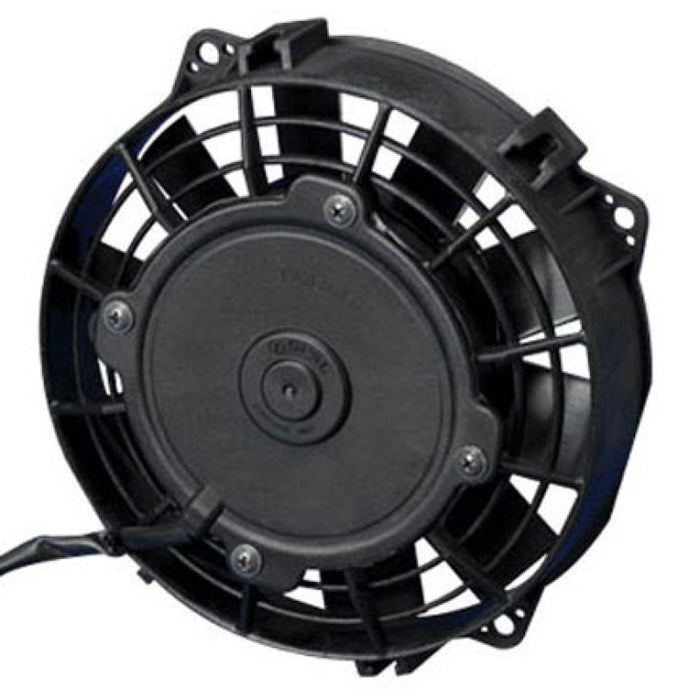

Spal's low profile electric fan for heat exchangers or oil coolers. You can use Spal's 30130013 or Maradyne's M0912T push in mounting pins. For CBR and Long Tru-Cool oil coolers, the Spal 30130013 push through pins work better. Long Tru-Cool can only fit Spal's 1/16" pins and they go in at about a 45° angle. You can also use Spal's plastic slide on mounting brackets to extend the mounting out.
- 10 Straight blades
- Puller
- Uses FRPT plug
- 313 CFM at '0' static pressure
- 12 Volt
- 6-1/2" Diameter
- 2" Thick
- 4 Bolt 5-5/16" x 5-5/16" pattern
- 1/4" Mounting holes
