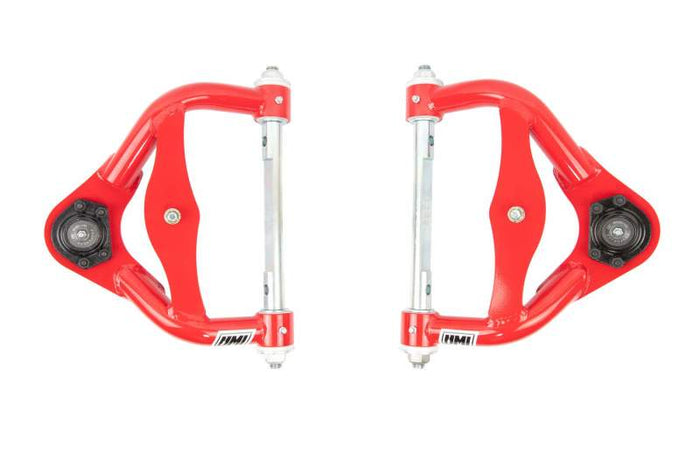

Upgrade your G-body's performance potential with our P/N 3033 tubular upper a-arms. These a-arms feature a relocated ball joint plate that allows for up to six degrees of positive caster without the need for excessive shimming. Enjoy improved steering feedback and a precise feel thanks to the UMI built Delrin bushings. The a-arms also come with greaseable, low deflection UMI designed Delrin bushings, chromoly cross shafts, premium ball joints, and polyurethane bump stops. These track-tested a-arms are jig built with DOM tubing and have a durable powder coat finish in gloss red or black. For even better performance, consider our P/N 3033-1 which features a ½” taller ball joint for improved camber curve and flatter contact patch.
PRODUCT FEATURES
- Relocated ball joint pad for increased caster without excess shims
- CNC machined ball joint mount & tubing radiuses
- Robust tubular design bent on a programmable tube bender
- TIG welded for superior strength & clean looks
- 4140 chromoly cross shafts, CNC machined & zinc plated
- UMI built, greaseable & fluted CNC machined no deflection Delrin bushings
- Polyurethane bump stops included
- Premium ball joints installed
- Direct bolt-in compatible with factory or UMI lower a-arm & factory spindle
- May also work in conjunction with other lower a-arms and/or spindles
- Package includes recommended alignment specs & detailed installation instructions
- Designed & Manufactured in Philipsburg, PA – USA
| Fitment | 1978-1988 GM G-Body
1982-2003 S10/S15 |
|---|---|
| Platform | 1982-2003 S10/S15 |
| Manufacturer | UMI Performance |
| Direct Bolt-On | Yes |
| Control Arm Style | Tubular |
| Finish | Powder Coat |
| UOM | Pair |
| Material | Mild Steel |
| Hardware | Not Included |
| Modifications | None |
This '3033 - Upper A-arms, Standard Ball Joints' fits the following platforms:
1978-1988 GM G-Body
- 1978-1987 Buick Regal
- 1978-1987 Chevrolet El Camino
- 1978-1983 Chevrolet Malibu
- 1978-1988 Chevrolet Monte Carlo
- 1978-1987 GMC Caballero
- 1981-1988 Oldsmobile Cutlass
- 1982-1986 Pontiac Bonneville
- 1978-1987 Pontiac Grand Prix
1982-2003 S10/S15
- 1982-2003 Chevrolet S-10 2WD
- 1983-1994 Chevrolet S10 Blazer 2WD
- 1982-1990 GMC S15 2WD
- 1991-2003 GMC Sonoma 2WD
- 1983-1991 GMC S15 Jimmy 2WD
This 3033 - Upper A-arms, Standard Ball Joints fits the following vehicles:
Buick
Regal
- 1978 Buick Regal
- 1979 Buick Regal
- 1980 Buick Regal
- 1981 Buick Regal
- 1982 Buick Regal
- 1983 Buick Regal
- 1984 Buick Regal
- 1985 Buick Regal
- 1986 Buick Regal
- 1987 Buick Regal
Chevrolet
El Camino
- 1978 Chevrolet El Camino
- 1979 Chevrolet El Camino
- 1980 Chevrolet El Camino
- 1981 Chevrolet El Camino
- 1982 Chevrolet El Camino
- 1983 Chevrolet El Camino
- 1984 Chevrolet El Camino
- 1985 Chevrolet El Camino
- 1986 Chevrolet El Camino
- 1987 Chevrolet El Camino
Malibu
- 1978 Chevrolet Malibu
- 1979 Chevrolet Malibu
- 1980 Chevrolet Malibu
- 1981 Chevrolet Malibu
- 1982 Chevrolet Malibu
- 1983 Chevrolet Malibu
Monte Carlo
- 1978 Chevrolet Monte Carlo
- 1979 Chevrolet Monte Carlo
- 1980 Chevrolet Monte Carlo
- 1981 Chevrolet Monte Carlo
- 1982 Chevrolet Monte Carlo
- 1983 Chevrolet Monte Carlo
- 1984 Chevrolet Monte Carlo
- 1985 Chevrolet Monte Carlo
- 1986 Chevrolet Monte Carlo
- 1987 Chevrolet Monte Carlo
- 1988 Chevrolet Monte Carlo
S-10 2WD
- 1982 Chevrolet S-10 2WD
- 1983 Chevrolet S-10 2WD
- 1984 Chevrolet S-10 2WD
- 1985 Chevrolet S-10 2WD
- 1986 Chevrolet S-10 2WD
- 1987 Chevrolet S-10 2WD
- 1988 Chevrolet S-10 2WD
- 1989 Chevrolet S-10 2WD
- 1990 Chevrolet S-10 2WD
- 1991 Chevrolet S-10 2WD
- 1992 Chevrolet S-10 2WD
- 1993 Chevrolet S-10 2WD
- 1994 Chevrolet S-10 2WD
- 1995 Chevrolet S-10 2WD
- 1996 Chevrolet S-10 2WD
- 1997 Chevrolet S-10 2WD
- 1998 Chevrolet S-10 2WD
- 1999 Chevrolet S-10 2WD
- 2000 Chevrolet S-10 2WD
- 2001 Chevrolet S-10 2WD
- 2002 Chevrolet S-10 2WD
- 2003 Chevrolet S-10 2WD
S10 Blazer 2WD
- 1983 Chevrolet S10 Blazer 2WD
- 1984 Chevrolet S10 Blazer 2WD
- 1985 Chevrolet S10 Blazer 2WD
- 1986 Chevrolet S10 Blazer 2WD
- 1987 Chevrolet S10 Blazer 2WD
- 1988 Chevrolet S10 Blazer 2WD
- 1989 Chevrolet S10 Blazer 2WD
- 1990 Chevrolet S10 Blazer 2WD
- 1991 Chevrolet S10 Blazer 2WD
- 1992 Chevrolet S10 Blazer 2WD
- 1993 Chevrolet S10 Blazer 2WD
- 1994 Chevrolet S10 Blazer 2WD
GMC
Caballero
- 1978 GMC Caballero
- 1979 GMC Caballero
- 1980 GMC Caballero
- 1981 GMC Caballero
- 1982 GMC Caballero
- 1983 GMC Caballero
- 1984 GMC Caballero
- 1985 GMC Caballero
- 1986 GMC Caballero
- 1987 GMC Caballero
S15 2WD
- 1982 GMC S15 2WD
- 1983 GMC S15 2WD
- 1984 GMC S15 2WD
- 1985 GMC S15 2WD
- 1986 GMC S15 2WD
- 1987 GMC S15 2WD
- 1988 GMC S15 2WD
- 1989 GMC S15 2WD
- 1990 GMC S15 2WD
Sonoma 2WD
- 1991 GMC Sonoma 2WD
- 1992 GMC Sonoma 2WD
- 1993 GMC Sonoma 2WD
- 1994 GMC Sonoma 2WD
- 1995 GMC Sonoma 2WD
- 1996 GMC Sonoma 2WD
- 1997 GMC Sonoma 2WD
- 1998 GMC Sonoma 2WD
- 1999 GMC Sonoma 2WD
- 2000 GMC Sonoma 2WD
- 2001 GMC Sonoma 2WD
- 2002 GMC Sonoma 2WD
- 2003 GMC Sonoma 2WD
S15 Jimmy 2WD
- 1983 GMC S15 Jimmy 2WD
- 1984 GMC S15 Jimmy 2WD
- 1985 GMC S15 Jimmy 2WD
- 1986 GMC S15 Jimmy 2WD
- 1987 GMC S15 Jimmy 2WD
- 1988 GMC S15 Jimmy 2WD
- 1989 GMC S15 Jimmy 2WD
- 1990 GMC S15 Jimmy 2WD
- 1991 GMC S15 Jimmy 2WD
Oldsmobile
Cutlass
- 1981 Oldsmobile Cutlass
- 1982 Oldsmobile Cutlass
- 1983 Oldsmobile Cutlass
- 1984 Oldsmobile Cutlass
- 1985 Oldsmobile Cutlass
- 1986 Oldsmobile Cutlass
- 1987 Oldsmobile Cutlass
- 1988 Oldsmobile Cutlass
Pontiac
Bonneville
- 1982 Pontiac Bonneville
- 1983 Pontiac Bonneville
- 1984 Pontiac Bonneville
- 1985 Pontiac Bonneville
- 1986 Pontiac Bonneville
Grand Prix
- 1978 Pontiac Grand Prix
- 1979 Pontiac Grand Prix
- 1980 Pontiac Grand Prix
- 1981 Pontiac Grand Prix
- 1982 Pontiac Grand Prix
- 1983 Pontiac Grand Prix
- 1984 Pontiac Grand Prix
- 1985 Pontiac Grand Prix
- 1986 Pontiac Grand Prix
- 1987 Pontiac Gran
