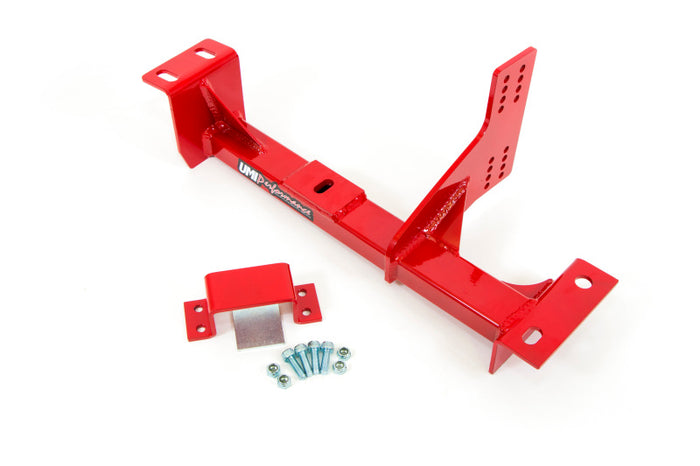

Upgrade your vehicle's performance with the UMI Performance torque arm relocation kit today. This kit is designed to enhance the performance of your vehicle by relocating the front mounting point of the torque arm off the transmission, providing protection to the tail shaft from damage. It includes a new, stronger transmission cross member with a built-in torque arm mount. Compatible with a variety of stock style aftermarket torque arms as well as the factory torque arm, this kit is 100% bolt-in and does not require any drilling, cutting, or welding for installation. Ensure to use a solid one-piece polyurethane bushing with this kit to maximize its effectiveness.
Please note: This kit requires a solid one-piece polyurethane bushing and will not work with the factory two-piece design. If using a stock torque arm with this kit, an aftermarket polyurethane bushing must be purchased separately (Item # 3004).
PRODUCT FEATURES
- Relocates front mounting point of torque arm
- Provides protection to tail shaft from damage
- New, stronger transmission cross member with built-in torque arm mount
- Constructed with rectangular mild steel tubing and 0.188” mounting plates
- Compatible with a variety of stock style aftermarket torque arms and factory torque arm
- Prevents torque arm failure by relocating it from transmission tail shaft
- Does not affect ground clearance
- Compatible with most torque arms that bolt into the stock location
- Saves weight compared to stock unit
- 100% bolt-in installation, no drilling, cutting, or welding required
- Must be used with solid one-piece polyurethane bushing
- Not compatible with factory two-piece bushing design
- Aftermarket polyurethane bushing required for use with stock torque arm
| Fitment | 1998-2002 GM F-Body |
|---|---|
| Platform | 1993-2002 GM F-Body |
| Manufacturer | UMI Performance |
| Finish | Powder Coat |
| UOM | Each |
| Direct Bolt-On | Yes |
| Modifications | None |
| Material | Mild Steel |
| Hardware | Included |
This '2208 - 1998-2002 GM F-Body Torque Arm Relocation Kit, Automatic' fits the following platforms:
1998-2002 GM F-Body
- 1998-2002 Chevrolet Camaro
- 1998-2002 Pontiac Firebird
This 2208 - 1998-2002 GM F-Body Torque Arm Relocation Kit, Automatic fits the following vehicles:
Chevrolet
Camaro
- 1998 Chevrolet Camaro
- 1999 Chevrolet Camaro
- 2000 Chevrolet Camaro
- 2001 Chevrolet Camaro
- 2002 Chevrolet Camaro
Pontiac
Firebird
- 1998 Pontiac Firebird
- 1999 Pontiac Firebird
- 2000 Pontiac Firebird
- 2001 Pontiac Firebird
- 2002 Pontiac Firebird
