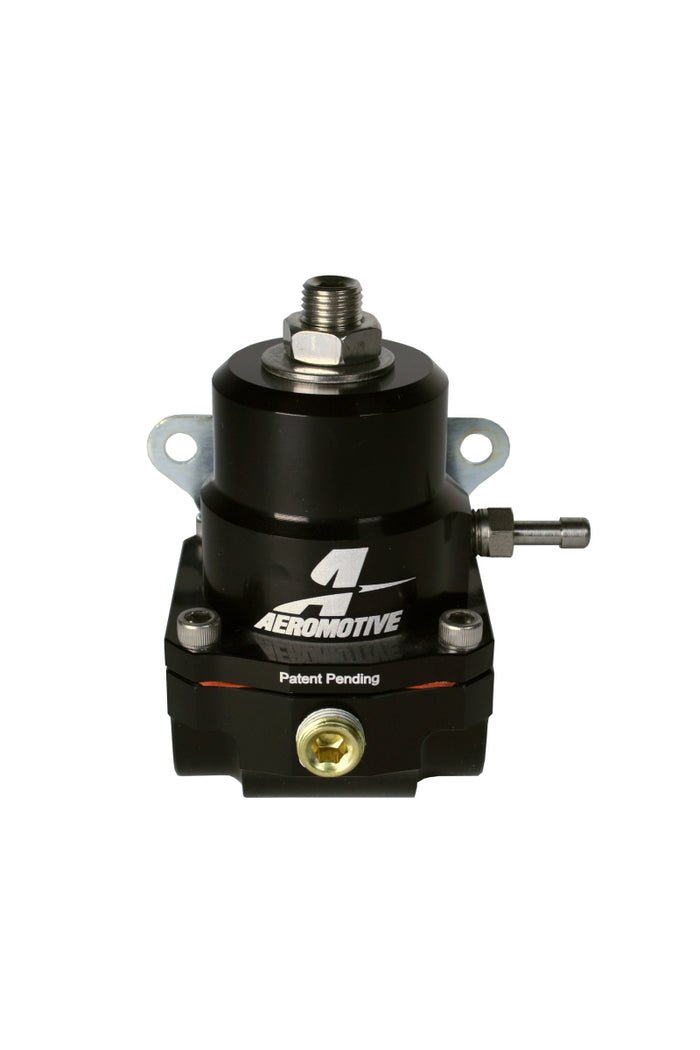

A1000 Gen-II EFI Regulator
40-70 PSI EFI Regulator with ORB ports
High Performance, adjustable EFI regulator designed for medium to high horsepower applications. This regulators features Aeromotive’s high-flow design, superb pressure control and legendary durability. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Engineered for A1000 class and smaller pumps.
- Gas, ethanol, methanol and diesel compatible.
- 40-75 PSI adjustable base pressure range.
- 1:1 vacuum/boost reference capability.
- 1/8″ NPT dedicated gauge port.
- P/N 13138 with (2) ORB-06 inlet/outlet ports
- P/N 13139 with (2) ORB-08 inlet/outlet ports
- P/N 13140 with (2) ORB-10 inlet/outlet ports
- All P/N’s include (1) ORB-06 return port.
- Patent No. D763,409
Recommended Fittings for inlet/outlet ports:
- P/N 15605 ORB-08 to AN-06 for AN-06 fuel line.
- P/N 15607 ORB-08 to AN-08 for AN-08 fuel line.
- P/N 15461 ORB-08 to AN-10 for AN-10 fuel line.
Recommended fittings for return port:
- P/N 15606 ORB-06 to AN-06 for AN-06 fuel line.
- P/N 15649 ORB-06 to AN-08 for AN-08 fuel line.
