Product Description:

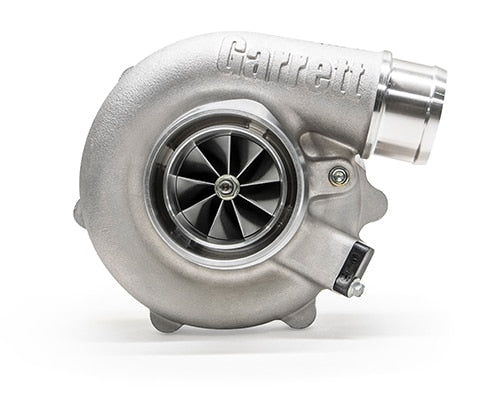

The Garrett G-Series G25-660 advanced small frame ball bearing turbocharger. 660HP from a small frame package!
Product Specifications:
Oil Fittings, Flanges, and Components Solutions:
The Garrett G-Series G25-660 advanced small frame ball bearing turbocharger. 660HP from a small frame package!
- Ultra High Flow G-Series Compressor Wheel
- Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Product Specifications:
- Compressor Wheel Inducer: 54mm
- Compressor Wheel Exducer: 67mm
- Compressor Wheel Trim: 65
- Compressor Housing Inlet: 3 Inch Diameter
- Compressor Housing Outlet: 2 Inch Diameter
- Compressor Housing A/R: .70
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 49mm
- Turbine Wheel Trim: 84
Oil Fittings, Flanges, and Components Solutions:
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- Oil drain fasteners: Product Code: MIA-FST-034
- Boost Pressure Port Fitting: ATP-FTG-198
- Speed Sensor Kit: ATP-ACS-032
Compressor & Turbine Maps:
Garrett Part Number:
- 858161-5003S
- 871389-5010S
- 871389-5011S
- 877895-5002S
- 877895-5005S
- 877895-5006S
