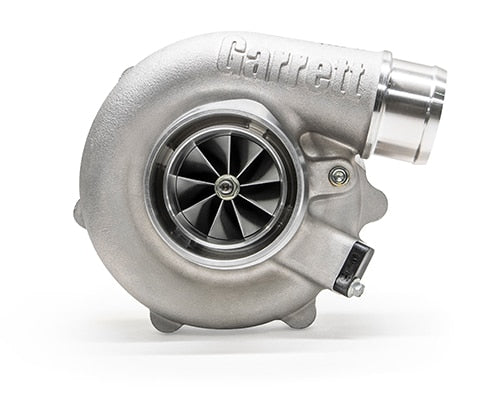

Supercore, Garrett G25-660, STANDARD ROTATION, Turbo W/O Turbine Housing, P/N: 858161-5003S

Supercore, Garrett G25-660, STANDARD ROTATION, Turbo W/O Turbine Housing, P/N: 858161-5003S

Regular price $2,279.97 USD
Regular price Sale price $2,279.97 USD
Shipping calculated at checkout.
Garrett
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

GRT858161-5003S
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

858161-5003S
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

In stock
Super Core Assemblies
Product Description:The Garrett G-Series G25-660 advanced small frame ball bearing turbocharger. 660HP from a small frame package! Ultra High Flow G-Series Compressor Wheel Evolutionary aero G-Series Turbine Wheel made from...
Read more
Found a better price elsewhere?
secure-payments
View full details

Description

Product Description:

The Garrett G-Series G25-660 advanced small frame ball bearing turbocharger. 660HP from a small frame package!
  • Ultra High Flow G-Series Compressor Wheel
  • Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating

Product Specifications:

  • Compressor Wheel Inducer: 54mm
  • Compressor Wheel Exducer: 67mm
  • Compressor Wheel Trim: 65
  • Compressor Housing Inlet: 3 Inch Diameter
  • Compressor Housing Outlet: 2 Inch Diameter
  • Compressor Housing A/R: .70
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 49mm
  • Turbine Wheel Trim: 84

Oil Fittings, Flanges, and Components Solutions:

  •  Oil drain flange: Product Code: ATP-FLA-010
  •  Oil drain gasket: Product Code: GRT-GSK-008
  •  Oil drain fasteners: Product Code: MIA-FST-034
  •  Boost Pressure Port Fitting: ATP-FTG-198

  • Speed Sensor Kit: ATP-ACS-032

Compressor & Turbine Maps:

Garrett Part Number:

  • 858161-5003S
  • 871389-5010S
  • 871389-5011S
  • 877895-5002S
  • 877895-5005S
  • 877895-5006S
