Product Description:

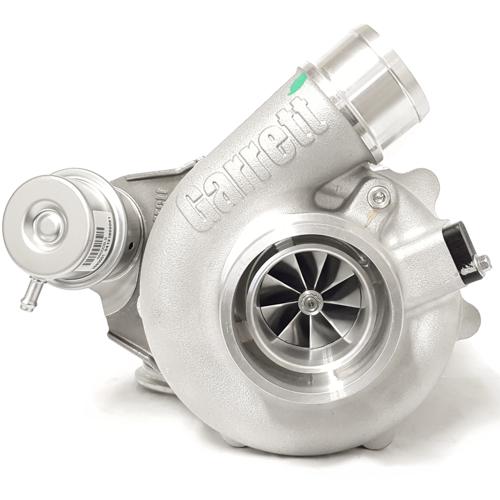

The Garrett G-Series G25-660 advanced small frame ball bearing turbocharger; including a Garrett stainless steel V-Band Inlet, V-Band Outlet, and Internal Wastegate .72 A/R turbine housing (Garrett Part #877895-5005S). 660HP from a small frame package!
- Ultra High Flow G-Series Compressor Wheel
- Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
- Includes -4AN oil feed fitting and -6AN coolant/water fittings
Product Specifications:
- Compressor Wheel Inducer: 54mm
- Compressor Wheel Exducer: 67mm
- Compressor Wheel Trim: 65
- Compressor Housing Inlet: 3 Inch Diameter
- Compressor Housing Outlet: 2 Inch Diameter
- Compressor Housing A/R: .70
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 49mm
- Turbine Wheel Trim: 84
- Turbine Housing Inlet: 3 Inch O.D. V-Band
- Turbine Housing Outlet: 3.55 inch O.D. V-Band
- Includes Oil Feed (1mm) Restrictor Fitting to -4AN
- Includes two Coolant Fittings to -6AN
Oil Fittings, Flanges, and Components Solutions:
- Inlet V-Band Flange (For Turbo Manifold): ATP-FLS-350
- Out V-Band Flange (For Down-pipe): ATP-FLS-351
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- Oil drain fasteners: Product Code: MIA-FST-034
- Boost Pressure Port Fitting: ATP-FTG-198
- Speed Sensor Kit: ATP-ACS-032
Compressor & Turbine Maps:
Garrett Part Number:
- 877895-5005S
NOT CARB-APPROVED. ILLEGAL TO USE OR INSTALL IN CALIFORNIA. IF YOU LIVE IN CA, WE CANNOT SHIP YOU THIS ITEM AND YOU WILL BE CHARGED A 10% CANCELLATION FEE IF YOU ORDER. PLEASE LOOK FOR OTHER PRODUCTS WITH CARB APPROVAL.
