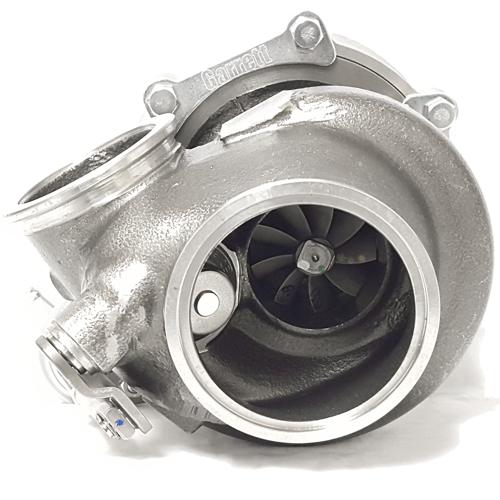

Garrett G25-660 & V-Band, w/ Internally Wastegated Turbine Housing, .72 A/R. # 877895-5005S

Product Description:

The Garrett G-Series G25-660 advanced small frame ball bearing turbocharger; including a Garrett stainless steel V-Band Inlet, V-Band Outlet, and Internal Wastegate .72 A/R turbine housing (Garrett Part #877895-5005S). 660HP from a small frame package!

• Ultra High Flow G-Series Compressor Wheel

• Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating

• Includes -4AN oil feed fitting and -6AN coolant/water fittings

Product Specifications:

• Compressor Wheel Inducer: 54mm

• Compressor Wheel Exducer: 67mm

• Compressor Wheel Trim: 65

• Compressor Housing Inlet: 3 Inch Diameter

• Compressor Housing Outlet: 2 Inch Diameter

• Compressor Housing A/R: .70

• Turbine Wheel Inducer: 54mm

• Turbine Wheel Exducer: 49mm

• Turbine Wheel Trim: 84

• Turbine Housing Inlet: 3 Inch O.D. V-Band

• Turbine Housing Outlet: 3.55 inch O.D. V-Band

• Includes Oil Feed (1mm) Restrictor Fitting to -4AN

• Includes two Coolant Fittings to -6AN

Oil Fittings, Flanges, and Components Solutions:

• Inlet V-Band Flange (For Turbo Manifold): ATP-FLS-350

• Out V-Band Flange (For Down-pipe): ATP-FLS-351

• Oil drain flange: Product Code: ATP-FLA-010

• Oil drain gasket: Product Code: GRT-GSK-008

• Oil drain fasteners: Product Code: MIA-FST-034

• Boost Pressure Port Fitting: ATP-FTG-198

• Speed Sensor Kit: ATP-ACS-032

 Compressor & Turbine Maps:

 Garrett Part Number:

• 877895-5005S

NOT CARB-APPROVED. ILLEGAL TO USE OR INSTALL IN CALIFORNIA. IF YOU LIVE IN CA, WE CANNOT SHIP YOU THIS ITEM AND YOU WILL BE CHARGED A 10% CANCELLATION FEE IF YOU ORDER. PLEASE LOOK FOR OTHER PRODUCTS WITH CARB APPROVAL.
