Haltech Elite 2500 + Terminated Harness Kit For Ford Falcon BA/BF Barra 4.0L I6 (HT-151368)

$3,164.00
$3,164.00
$0
Sold out
Quantity must be 1 or more

The Haltech Elite 2500 Terminated Harness Kit is a complete engine management solution for Ford Falcon BA/BF models powered by the 4.0L Barra I6 engine. With full support for all Barra variants—including turbocharged and naturally aspirated versions—this kit combines the precision of the Elite 2500 ECU with a terminated engine harness and pre-wired HPI6 ignition module for a streamlined installation.

Ideal for high-performance builds and competition use, the system delivers full tuning control of fuel, ignition, boost, and cam timing, along with support for advanced race functions and CAN-based expansion devices.

Note: For sanctioned competition/off-road use only (NOT CARB LEGAL).

Key Features

  • Designed for Ford Barra Engines:

    • Compatible with BA/BF variants including Barra 182, 190, 240T, 245T, and 270T

    • Supports factory Bosch EV1 injector connectors

  • Plug-and-Play Installation:

    • Terminated engine harness with integrated fuse block

    • Pre-wired HPI6 six-channel ignition module included

    • Factory coil ignition harness pre-installed

  • Elite 2500 ECU Functionality:

    • Drive-by-wire throttle support

    • Dual knock sensing and camshaft control

    • Closed-loop boost and O2 control

    • Flex fuel tuning with auto compensation

    • Support for NSP software and Haltech CAN expansion devices

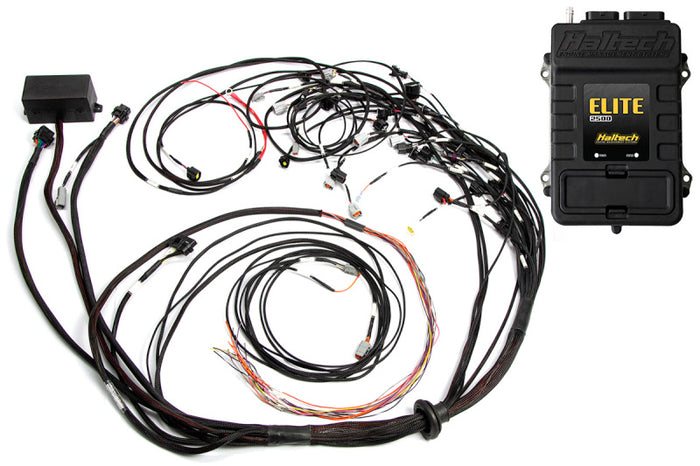

Included Components

  • Haltech Elite 2500 ECU

  • Terminated engine harness with fuse block

  • HPI6 6-channel ignition module (HT-020036)

  • Connector pack

  • Quick Start Guide

Performance Features

  • Racing & Tuning Functions:

    • Launch control, traction control, anti-lag, flat shift

    • Rolling anti-lag, trans brake, sequential turbo control

    • Intelligent 4D boost control with 14 adjustable correction maps

    • Multi-stage nitrous control with advanced ignition/fuel mapping

  • Advanced Calibration:

    • Up to 32 × 32 × 8 tuning table resolution

    • Per-cylinder 3D trims and long-term learning (auto-tune)

    • 2MB onboard logging and USB laptop data logging

    • Dual CAN Bus for dashes, sensors, and expansion modules

  • Sensor & I/O Capabilities:

    • Supports wideband O2, EGT, ride height, shock travel, and more

    • Expandable up to 45 input/output channels via CAN

Vehicle Applications

  • Ford Falcon BA/BF (Barra 4.0L I6)

  • Compatible with Barra 182, 190, 240T, 245T, 270T variants

  • Manual and race-specific builds
