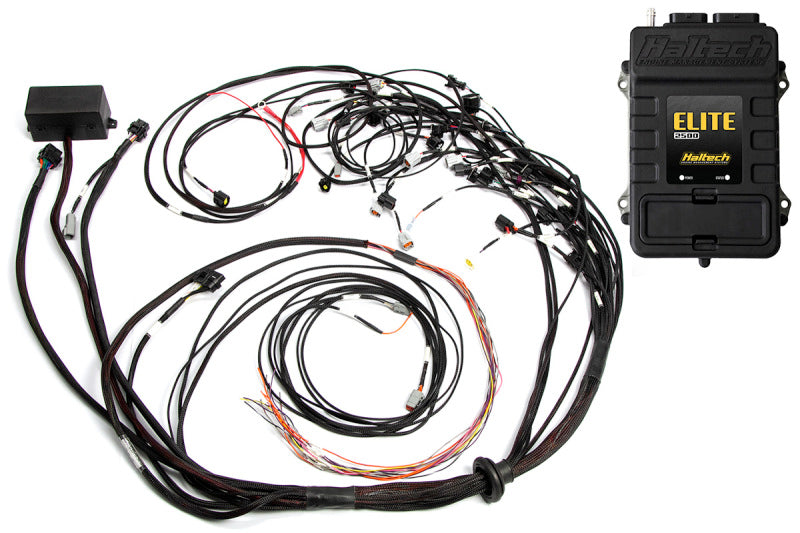

Haltech Elite 2500 + Terminated Harness Kit For Ford Falcon BA/BF Barra 4.0L I6 (HT-151368)

The Haltech Elite 2500 Terminated Harness Kit is a complete engine management solution for Ford Falcon BA/BF models powered by the 4.0L Barra I6 engine. With full support for all Barra variants—including turbocharged and naturally aspirated versions—this kit combines the precision of the Elite 2500 ECU with a terminated engine harness and pre-wired HPI6 ignition module for a streamlined installation.

Ideal for high-performance builds and competition use, the system delivers full tuning control of fuel, ignition, boost, and cam timing, along with support for advanced race functions and CAN-based expansion devices.

Note: For sanctioned competition/off-road use only (NOT CARB LEGAL).

Key Features

• Designed for Ford Barra Engines:

  • Compatible with BA/BF variants including Barra 182, 190, 240T, 245T, and 270T

  • Supports factory Bosch EV1 injector connectors

• Plug-and-Play Installation:

  • Terminated engine harness with integrated fuse block

  • Pre-wired HPI6 six-channel ignition module included

  • Factory coil ignition harness pre-installed

• Elite 2500 ECU Functionality:

  • Drive-by-wire throttle support

  • Dual knock sensing and camshaft control

  • Closed-loop boost and O2 control

  • Flex fuel tuning with auto compensation

  • Support for NSP software and Haltech CAN expansion devices

Included Components

• Haltech Elite 2500 ECU

• Terminated engine harness with fuse block

• HPI6 6-channel ignition module (HT-020036)

• Connector pack

• Quick Start Guide

Performance Features

• Racing & Tuning Functions:

  • Launch control, traction control, anti-lag, flat shift

  • Rolling anti-lag, trans brake, sequential turbo control

  • Intelligent 4D boost control with 14 adjustable correction maps

  • Multi-stage nitrous control with advanced ignition/fuel mapping

• Advanced Calibration:

  • Up to 32 × 32 × 8 tuning table resolution

  • Per-cylinder 3D trims and long-term learning (auto-tune)

  • 2MB onboard logging and USB laptop data logging

  • Dual CAN Bus for dashes, sensors, and expansion modules

• Sensor & I/O Capabilities:

  • Supports wideband O2, EGT, ride height, shock travel, and more

  • Expandable up to 45 input/output channels via CAN

Vehicle Applications

• Ford Falcon BA/BF (Barra 4.0L I6)

• Compatible with Barra 182, 190, 240T, 245T, 270T variants

• Manual and race-specific builds
