Engineered for the Nissan RB30 Single Cam engine, this Haltech kit includes the powerful Elite 2500 ECU and a terminated engine harness with integrated sub-harness for LS1 ignition coils and CAS. Designed for a simple and effective installation, this Plug'n'Play solution offers professional-level engine management without the complexity of custom wiring.
Note: Ideal for RB30 engine conversions utilizing LS1 coils with built-in ignitors and factory-style CAS configuration.
Key Features
-
Engine Compatibility:
-
Designed for Nissan RB30 Single Cam engines
-
Includes CAS and LS1 ignition coil sub-harness for seamless integration
-
-
Elite 2500 ECU Capabilities:
-
Full DBW support, flex fuel control, dual knock detection, and race features
-
IP67-rated waterproof enclosure for durability
-
-
Simple Installation:
-
Terminated harness with labeled outputs for rapid connection
-
Color-coded wires match supplied wiring diagrams
-

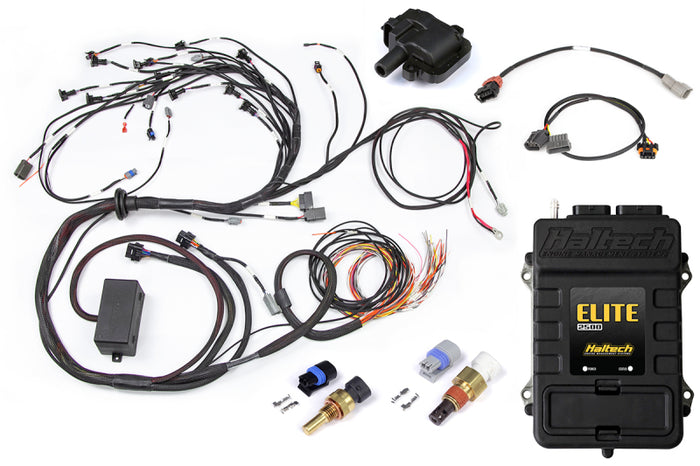

Included Components
-
Haltech Elite 2500 ECU with DBW and Race Functions
-
Terminated Engine Harness
-
LS1 Coil Sub-Harness (with built-in ignitors)
-
CAS Sub-Harness
-
M14 x 1.5 Air Temperature Sensor
-
M12 x 1.5 Coolant Temperature Sensor
-
USB Programming Cable
-
Quick Start Guide
-
Software and Full ECU Manual (USB/CD)
Advanced ECU Functions
-
DBW throttle control (user-defined I/O)
-
Auto-tune on 4D maps for ignition, fuel, boost, cam, and idle
-
Closed-loop wideband O2 control (dual bank)
-
Per-cylinder tuning with 3D correction maps
-
On-board and laptop data logging (up to 40 channels)
-
Dual CAN Bus for Haltech dashes and expansion
-
Sequential, batch, or multipoint fuel injection
-
Full support for engine protection, nitrous, boost-by-gear, anti-lag, traction control, and launch control
-
Nissan RB30 Single Cam
-
Configured for use with LS1 coils and factory-style CAS
