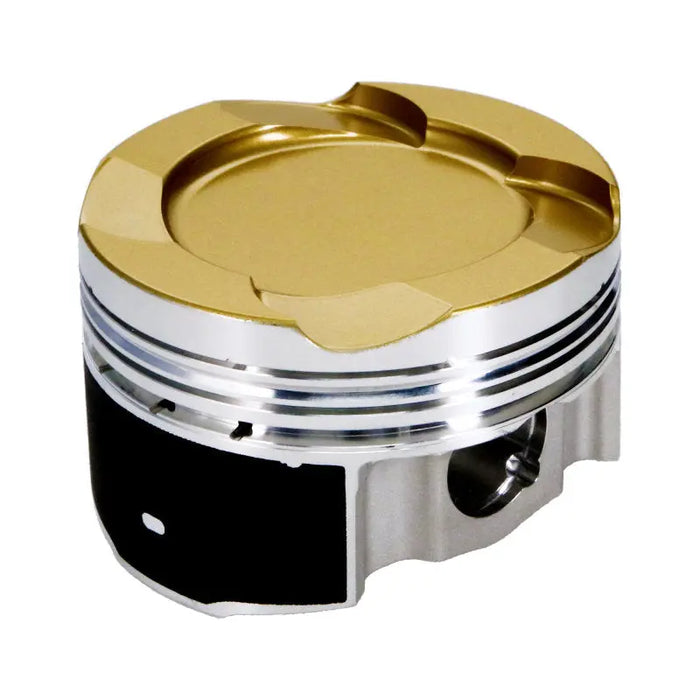

JE Ultra Series BMW N54B30 Piston Kit – 84.50 Mm Bore – 1.244 In. CH, -22.00 CC
JE Pistons Ultra Series pistons for sport compact and euro applications combine all of the best, most desirable piston features, such as thermal barrier crown coating, lateral gas ports, thick-wall wrist pins, and a revolutionary new forging technology for the ultimate in strength. Premium, gas-nitrided carbon steel rings are included.
Specifications
| Piston Series | JE Ultra Series |
|---|---|
| Cylinder Head | N54B30 |
| Bore Diameter | 84.50 MM |
| Piston Head Type | Dish |
| Compression Height | 1.244 IN |
| Piston Volume | -22.00 CC |
| Piston Material | 2618 |
| Forging Type | FSR |
| Piston Average Weight | 337 GR |
| Ring Set Included | Yes |
| Top Compression Ring Thickness | 0.0400 IN |
| Second Compression Ring Thickness | 0.0480 IN |
| Oil Ring Thickness | 0.111 IN |
| Wrist Pin Material | 5115 Low Carbon Steel, Case Hardened |
| Wrist Pin Length | 2.250 IN |
| Wrist Pin Wall Thickness | 0.150 IN |
