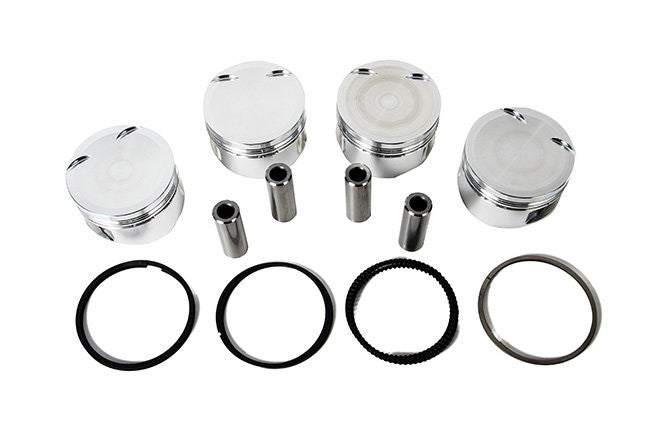

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications :
| Piston Series |
JE Pistons |
|---|---|
| Cylinder Head |
B18C |
| Bore Diameter |
81.50 MM |
| Piston Head Type |
Flat |
| Compression Height |
1.181 IN |
| Piston Volume |
1.90 CC |
| Piston Material |
2618 |
| Piston Quantity |
4 |
| Forging Type |
FSR |
| Piston Average Weight |
296 GR |
| Ring Set Included |
Yes |
| Top Compression Ring Thickness |
0.0400 IN |
| Second Compression Ring Thickness |
0.0480 IN |
| Oil Ring Thickness |
0.111 IN |
| Wrist Pin Outer Diameter |
0.827 IN |
| Wrist Pin Length |
2.250 IN |
| Wrist Pin Wall Thickness |
0.150 IN |
