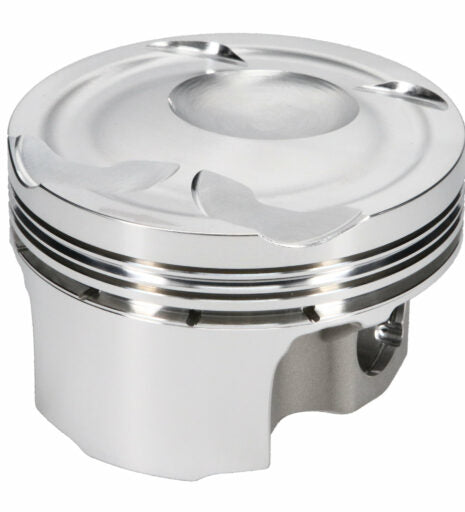

JE Pistons Ford 2.3L EcoBoost Piston Kit – 88.00 Mm Bore – 1.299 In. CH, -7.60 CC

Regular price
$899.99
Sale price
$899.99
Regular price
$1,059.82
Sold out
Unit price
Quantity must be 1 or more

JE Pistons Ford 2.3L EcoBoost Piston Kit – 88.00 Mm Bore – 1.299 In. CH, -7.60 CC

Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Specifications :

Piston Series

JE Pistons

Cylinder Head

2.3 ECOBOOST

Bore Diameter

88.00 MM

Piston Head Type

Dome

Compression Height

1.299 IN

Piston Volume

-7.60 CC

Piston Material

2618

Piston Quantity

4

Forging Type

FSR

Piston Average Weight

360 GR

Ring Set Included

Yes

Top Compression Ring Thickness

0.0400 IN

Second Compression Ring Thickness

0.0480 IN

Oil Ring Thickness

0.111 IN

Wrist Pin Outer Diameter

0.886 IN

Wrist Pin Length

2.250 IN

Wrist Pin Wall Thickness

0.180 IN
