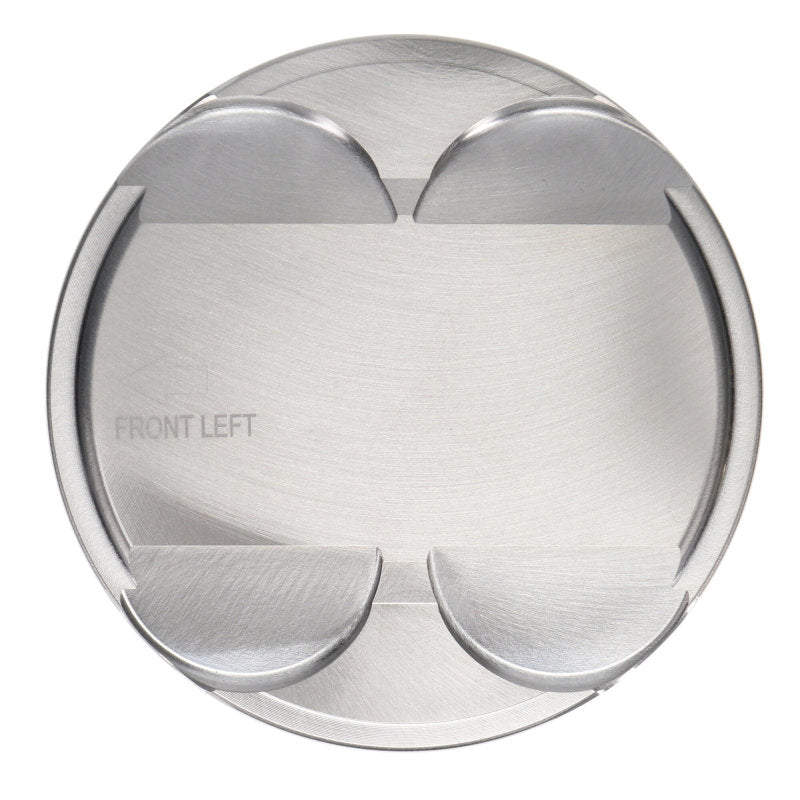

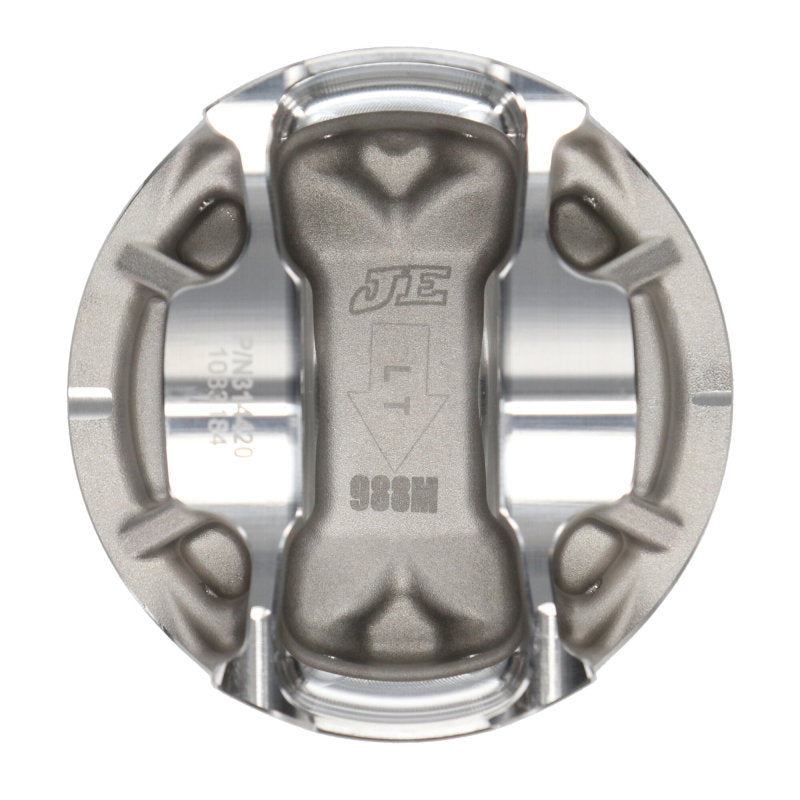

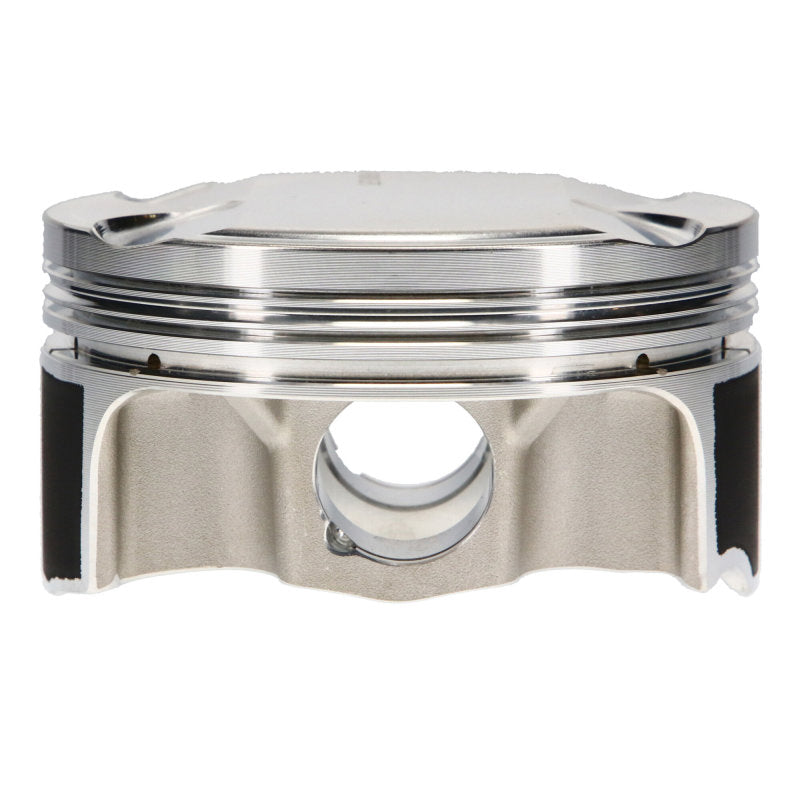

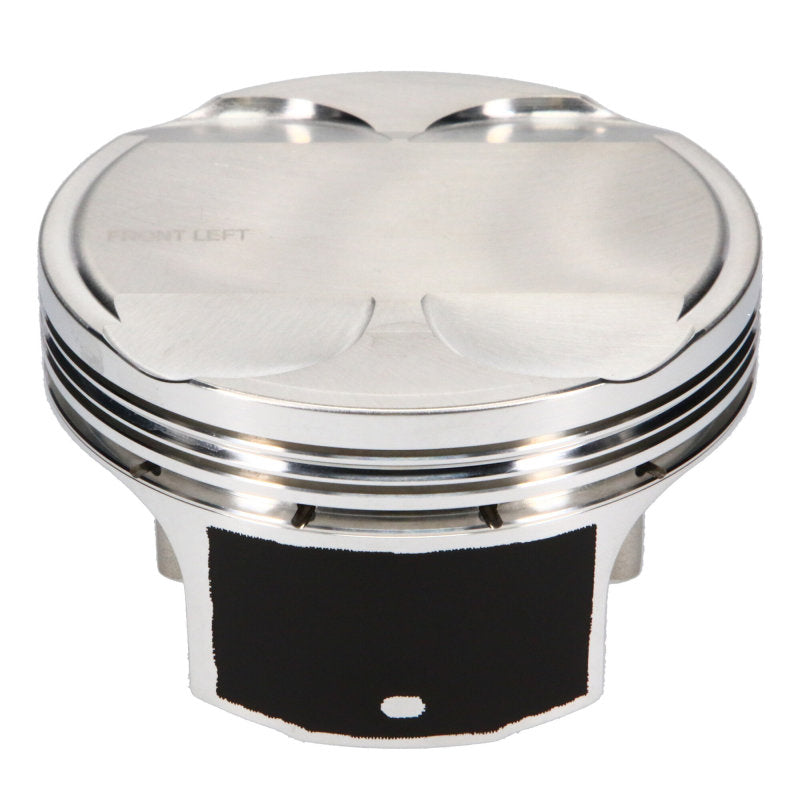

JE Pistons Ford Modular Piston Kit – 3.661 In. Bore – 1.168 In. CH, 1.36 CC
Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
Specifications :
| Piston Series |
JE Pistons |
|---|---|
| Cylinder Head |
MODULAR 5.0L COYOTE GEN 3 |
| Bore Diameter |
3.661 IN |
| Piston Head Type |
Dome |
| Compression Height |
1.168 IN |
| Piston Volume |
1.36 CC |
| Piston Material |
2618 |
| Piston Quantity |
8 |
| Forging Type |
FSR |
| Piston Average Weight |
374 GR |
| Ring Set Included |
No |
| Top Compression Ring Thickness |
0.0400 IN |
| Second Compression Ring Thickness |
0.0480 IN |
| Oil Ring Thickness |
0.111 IN |
| Wrist Pin Outer Diameter |
0.866 IN |
| Wrist Pin Length |
2.250 IN |
| Wrist Pin Wall Thickness |
0.180 IN |
