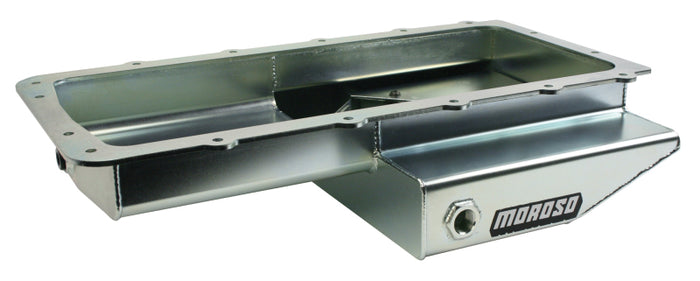

Steel, Wet Sump, 9-1/2 Quart Capacity, 4-3/8" Deep
Engine Application: Ford "Coyote"/5.2 "Voodoo" Engines
Fits: Cobra Kit Cars that require a rear sump oil pan
Features:- Designed for Cobra Replicas that require a shallow, rear sump oil pan
- Fully fabricated steel with a clear zinc finish
- Oil pan has a thick, steel rail with a 4-3/8" deep, 10-3/4" long by 14-1/2" wide rear sump
- Designed to be used with the 5.0 "Coyote"/5.2 "Voodoo" Gen 1 or 2 factory windage tray and dipstick
- Features a race-proven, four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
- 1/2" NPT fitting for supercharger drain back
- 1/2" NPT fitting for oil temperature sender
- 20 mm fitting for the factory oil level sensor*
- Requires the use of Oil Pump Pickup No. 24570
*If the factory low oil warning sensor is not going to be used, Part 22738, 20mm Plug with copper washer is available.
Other Part Numbers:
Moroso #mor20570
