Moroso Ford 5.0 Coyote/Cobra (w/Rear Sump) Road Race Baffled Wet Sump 9.5qt 4.5in Steel Oil Pan - eliteracefab.com
Click to zoom in

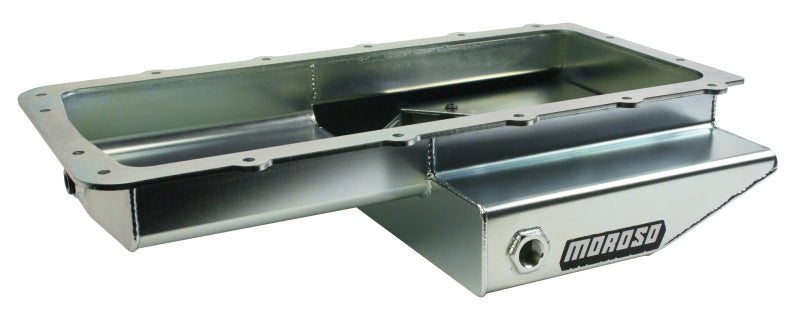

Moroso Ford 5.0 Coyote/Cobra (w/Rear Sump) Road Race Baffled Wet Sump 9.5qt 4.5in Steel Oil Pan

Moroso
MOR20570
In stock
Oil Pans
$669.28 $526.57
$526.57

customers are viewing this product
Moroso Ford 5.0 Coyote/Cobra (w/Rear Sump) Road Race Baffled Wet Sump 9.5qt 4.5in Steel Oil Pan

Steel, Wet Sump, 9-1/2 Quart Capacity, 4-3/8" Deep

Engine Application: Ford "Coyote"/5.2 "Voodoo" Engines

Fits: Cobra Kit Cars that require a rear sump oil pan

Features:
  • Designed for Cobra Replicas that require a shallow, rear sump oil pan
  • Fully fabricated steel with a clear zinc finish
  • Oil pan has a thick, steel rail with a 4-3/8" deep, 10-3/4" long by 14-1/2" wide rear sump
  • Designed to be used with the 5.0 "Coyote"/5.2 "Voodoo" Gen 1 or 2 factory windage tray and dipstick
  • Features a race-proven, four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing
  • 1/2" NPT fitting for supercharger drain back
  • 1/2" NPT fitting for oil temperature sender
  • 20 mm fitting for the factory oil level sensor*
  • Requires the use of Oil Pump Pickup No. 24570

*If the factory low oil warning sensor is not going to be used, Part 22738, 20mm Plug with copper washer is available.



Other Part Numbers:
Moroso #mor20570
