Upgrade your Subaru WRX MY97-98 (Australian Delivered and JDM models) with the Haltech Elite 1500 ECU and Plug 'n' Play Adaptor Harness Kit. This high-performance standalone ECU offers a fast, reliable solution for serious tuning and race-level engine management. Designed to integrate directly with the factory harness, the system provides advanced tuning capabilities, robust engine protection, and enhanced performance features—all in a rugged, water-resistant enclosure.
Important Emissions Notice:
This product is intended for off-road or competition use only and is not legal for public road use unless a specific exemption applies.
Key Features:
-
Direct Plug 'n' Play ECU upgrade for Subaru WRX MY97-98 (Australian Delivered and JDM)
-
Manual transmission only
-
Elite 1500 ECU with:
-
Drive-by-Wire throttle control
-
Dual channel knock control
-
Variable camshaft control (up to 4 cams)
-
Closed loop O2, boost, and idle control
-
Flex fuel support (direct ethanol content input)
-
On-board and laptop-based data logging
-
Launch control, traction control, anti-lag, and more
-
Dual CAN Bus communication for Haltech dashes and accessories
-
ECU Technical Specs:
-
4 x Fuel Injection Outputs
-
4 x Ignition Outputs
-
12 x Digital Outputs
-
10 x Analog Voltage Inputs
-
4 x Synchronized Pulsed Inputs
-
3 x Dedicated Inputs (Knock, Ignition Switch, Onboard MAP Sensor)
-
2 x Engine Position Inputs
-
Waterproof IP67-rated case
-
USB connectivity via NSP Calibration Software

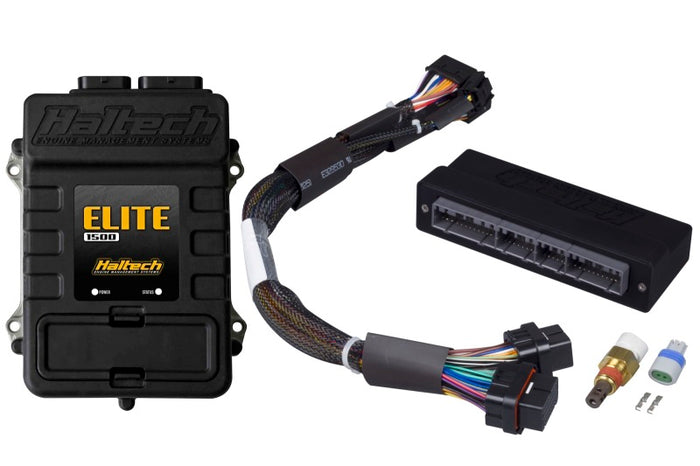

Includes:
-
Haltech Elite 1500 ECU with DBW and Race Functions
-
Injection-molded Plug 'n' Play adaptor harness
-
M14 x 1.5 air temp sensor with matching connector and pins
-
16-pin TYCO auxiliary I/O plug and pins
-
USB programming cable
Vehicle Fitment:
-
Subaru WRX MY97-98 (Australian Delivered and JDM) – Manual transmission only
Brand: Haltech
SKU: HT-150944
