Haltech Elite 1500 + Plug 'n' Play Adaptor Harness Kit for Subaru WRX MY97-98 (Manual Transmission) - HT-150944

Upgrade your Subaru WRX MY97-98 (Australian Delivered and JDM models) with the Haltech Elite 1500 ECU and Plug 'n' Play Adaptor Harness Kit. This high-performance standalone ECU offers a fast, reliable solution for serious tuning and race-level engine management. Designed to integrate directly with the factory harness, the system provides advanced tuning capabilities, robust engine protection, and enhanced performance features—all in a rugged, water-resistant enclosure.

Important Emissions Notice:
This product is intended for off-road or competition use only and is not legal for public road use unless a specific exemption applies.

Key Features:

• Direct Plug 'n' Play ECU upgrade for Subaru WRX MY97-98 (Australian Delivered and JDM)

• Manual transmission only

• Elite 1500 ECU with:

  • Drive-by-Wire throttle control

  • Dual channel knock control

  • Variable camshaft control (up to 4 cams)

  • Closed loop O2, boost, and idle control

  • Flex fuel support (direct ethanol content input)

  • On-board and laptop-based data logging

  • Launch control, traction control, anti-lag, and more

  • Dual CAN Bus communication for Haltech dashes and accessories

ECU Technical Specs:

• 4 x Fuel Injection Outputs

• 4 x Ignition Outputs

• 12 x Digital Outputs

• 10 x Analog Voltage Inputs

• 4 x Synchronized Pulsed Inputs

• 3 x Dedicated Inputs (Knock, Ignition Switch, Onboard MAP Sensor)

• 2 x Engine Position Inputs

• Waterproof IP67-rated case

• USB connectivity via NSP Calibration Software

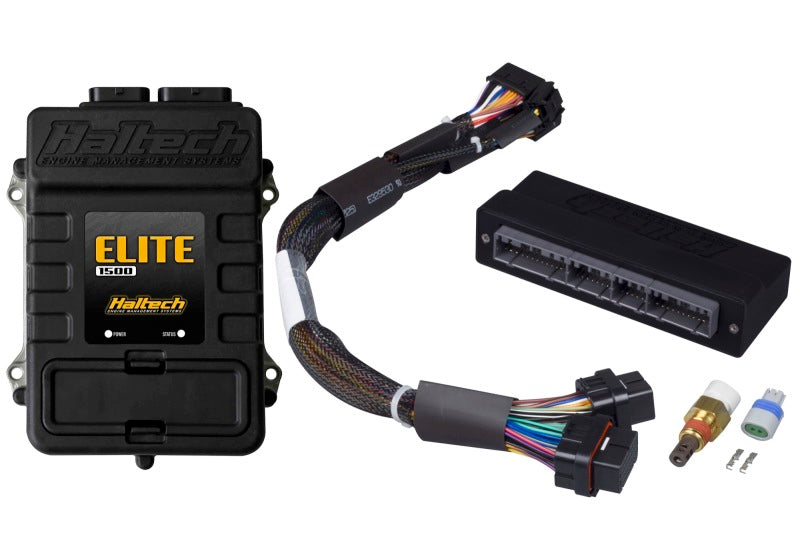

Includes:

• Haltech Elite 1500 ECU with DBW and Race Functions

• Injection-molded Plug 'n' Play adaptor harness

• M14 x 1.5 air temp sensor with matching connector and pins

• 16-pin TYCO auxiliary I/O plug and pins

• USB programming cable

Vehicle Fitment:

• Subaru WRX MY97-98 (Australian Delivered and JDM) – Manual transmission only

Brand: Haltech
SKU: HT-150944
