Haltech Elite 750 + Plug'n'Play Adaptor Harness Kit – Nissan Patrol Y60 TB42E (Manual & Automatic)

$1,655.00
$1,655.00
$0
Sold out
Quantity must be 1 or more

The Elite 750 ECU is a compact, entry-level standalone ECU that brings high-end tuning capabilities to the TB42E-powered Nissan Patrol Y60. Paired with a Plug'n'Play adaptor harness, this package offers a straightforward upgrade from the factory ECU, ideal for performance tuning, turbo setups, or fuel system upgrades.

Backed by Haltech’s NSP calibration software, it delivers modern engine management functionality with user-friendly setup and advanced tuning options, suitable for both street and off-road performance builds.

Key Features

  • Vehicle Compatibility:

    • Nissan Patrol/Safari Y60

    • Engine: TB42E

    • Transmission: Manual and automatic (no transmission control)

    • Note: Confirm ECU pinouts for rare configurations if unsure

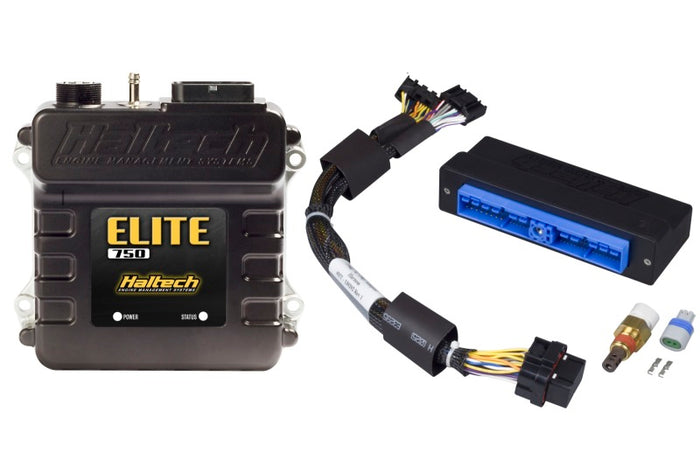

  • Included Components:

    • Haltech Elite 750 ECU

    • Injection molded Plug'n'Play Adaptor Harness

    • M14 x 1.5 Air Temp Sensor with plug and pins

    • Auxiliary I/O 16-Pin TYCO plug and pins

    • Waterproof USB Cap

    • USB Programming Cable

  • Installation Notes:

    • Supports use of spare ignition outputs for custom direct-fire ignition conversion (6 individual coils)

    • No transmission shift programming or control included

ECU Specifications

  • Internal 3-Bar MAP Sensor (200kPa / 29psi boost)

  • 6 x Fuel Injection Outputs (Peak & Hold)

  • 6 x Ignition Outputs

  • 2 x Engine Position Inputs, 2 x Digital Inputs

  • 5 x Digital Outputs, 2 x Analog Inputs

  • 3 x Dedicated Inputs (TPS, Coolant Temp, Air Temp)

  • USB & CAN Bus Connectivity

  • IP67 Waterproof Case

  • On-board Data Logging

  • NSP Software for Windows

Core ECU Functions

  • Flex Fuel Compatible (E85 ready via direct sensor input)

  • Closed-Loop O2 Control and Idle Speed Control (BAC-type supported)

  • Long-Term Learning for fuel, idle, and cam tuning

  • Variable Cam Control (single cam sensor setups)

  • Rotary Engine Injection Staging

  • CAN support for Haltech Dashes and OBDII devices

  • Wideband O2 and EGT input support (via CAN)

  • Nitrous and Boost Control with 3D mapping

  • Full per-cylinder fuel and ignition corrections

  • Fully mappable with 32x32 resolution and advanced tuning logic

Emissions Disclaimer

This product is intended for off-road or motorsport use only and is not legal for road use in emission-controlled vehicles.
