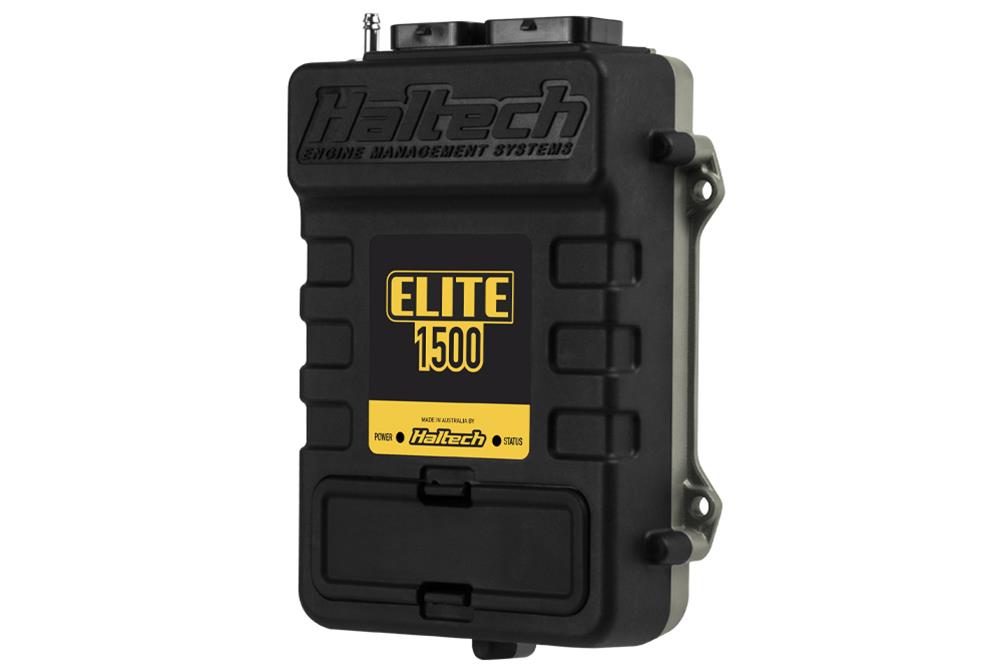

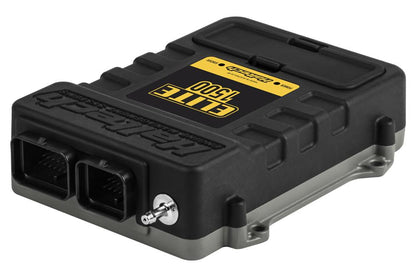

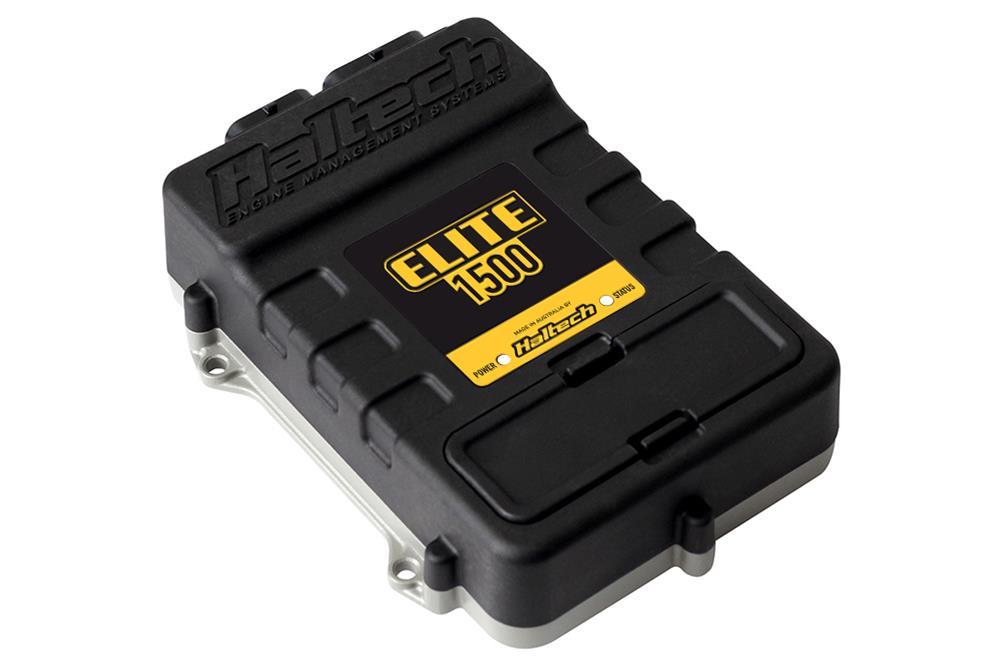

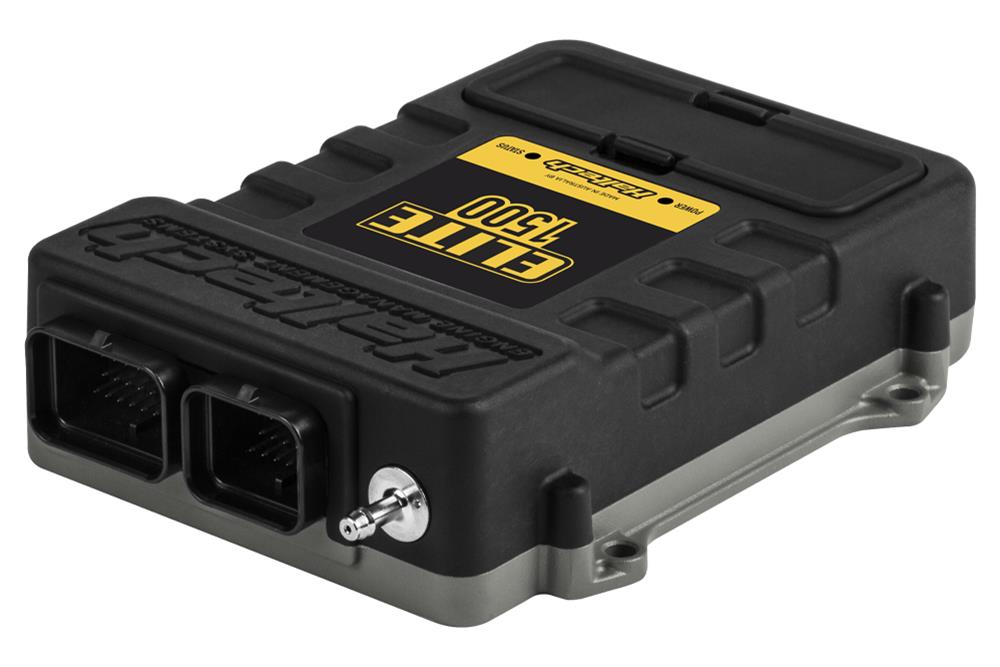

Haltech Elite 1500 + Premium Universal Wire-in Harness Kit – HT-150904

The Haltech Elite 1500 + Premium Universal Wire-in Harness Kit delivers a powerful, flexible engine management solution for custom builds, engine swaps, and motorsport applications. This package combines the cutting-edge Elite 1500 ECU with a Premium Universal Wire-In Harness that includes a fuse box, relays, and all necessary hardware to complete your custom EFI wiring installation.

With comprehensive support for drive-by-wire, variable cam control, flex-fuel tuning, and advanced race functions, the Elite 1500 is ideal for high-performance, forced induction, or naturally aspirated setups. Paired with Haltech’s Nexus Software Programmer (NSP), this system enables detailed tuning and monitoring with intuitive calibration tools.

Key Features:

• Suits: Universal 1–12 cylinder or 2-rotor applications

• Drive-by-wire, flex-fuel, and variable cam support

• IP67-rated ECU case for environmental protection

• NSP software for advanced mapping and real-time tuning

• Up to 4 injector and 4 ignition outputs

• 2MB internal datalogging memory and USB laptop interface

• CAN Bus communication for Haltech dashes and expansion modules

• NOT CARB LEGAL

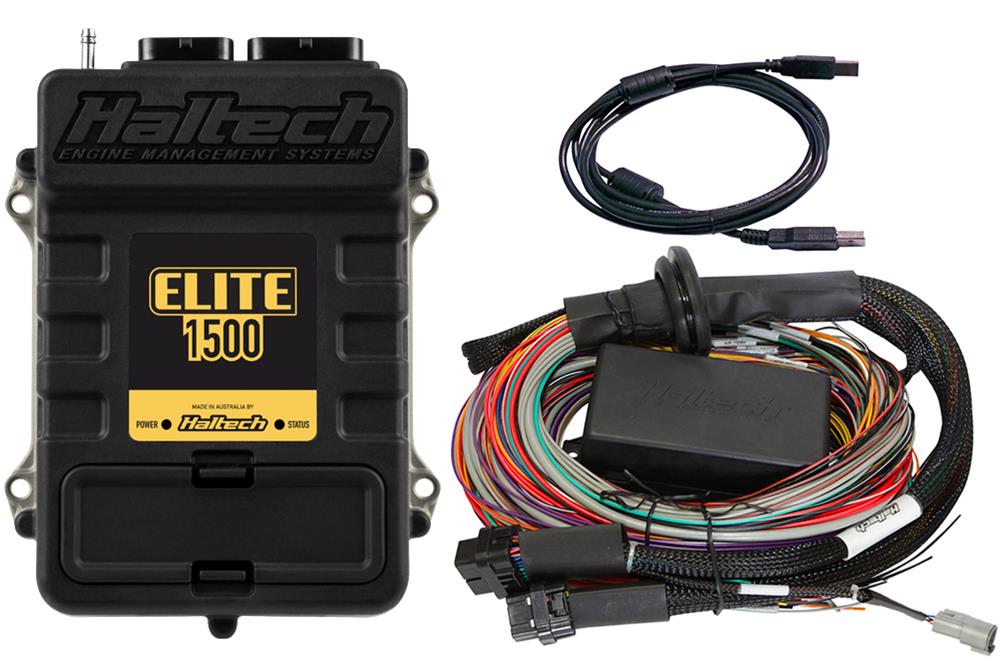

Included in Kit:

• Haltech Elite 1500 ECU with DBW and Race Functions

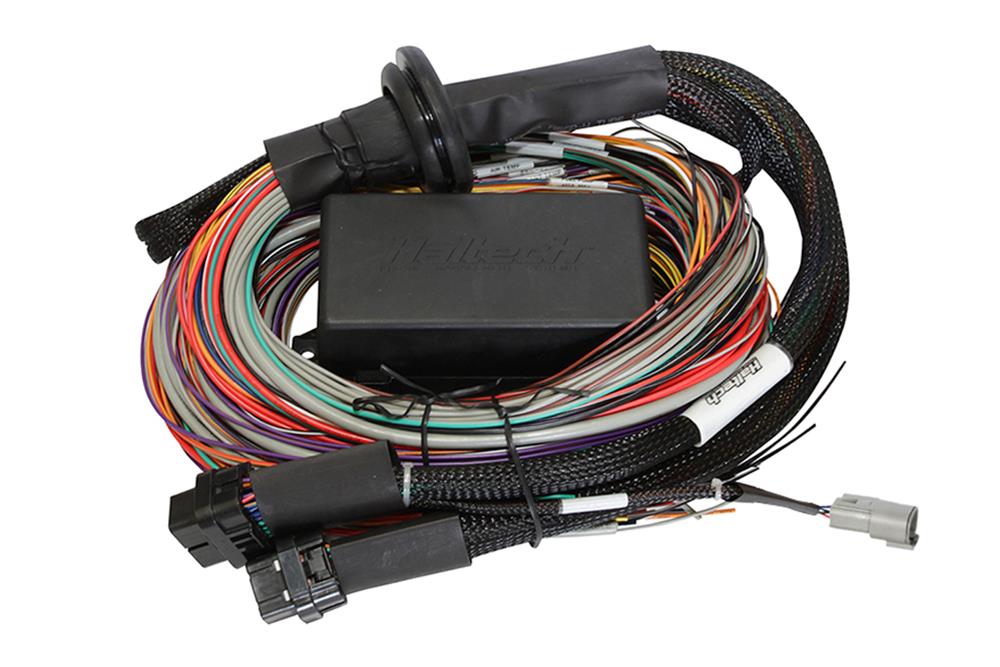

• Premium Universal Wire-In Harness

• Firewall grommet

• Molded 6-circuit Haltech fuse box with lid

• 4 relays, 7 fuses, and pins for 2 spare circuits

• Waterproof USB cap and USB programming cable

• Quickstart Guide and Wiring Diagram (digital)

ECU Capabilities:

• Full support for petrol, ethanol, methanol, and LPG

• Closed-loop idle, O₂, boost, and cam control

• 32x32x8 map resolution with per-cylinder tuning and 4D mapping

• Sequential, staged, or batch injection; multi-coil or distributor ignition

• Anti-lag, launch control, rolling launch, flat shift, traction control

• Up to 40-channel data logging at 200Hz

• Dual CAN Bus for up to 45 I/O expansion channels

Harness Highlights:

• Colour-coded and labeled wires for clarity and ease of installation

• Complete fuse and relay integration for standalone operation

• Suitable for dedicated race cars and custom builds

Applications:

• Universal compatibility for EFI-equipped performance engines

• Recommended for race vehicles, engine swaps, and custom tuning setups

Notes:

• Includes Quickstart Guide and Wiring Diagram for simplified installation

• Designed for off-road/competition use only

Emissions Notice:
This product is intended for sanctioned off-road/competition vehicles only.
