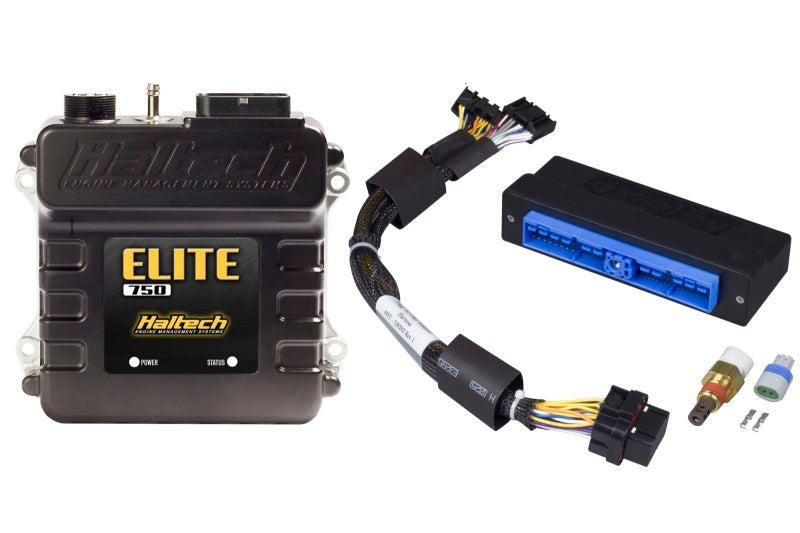

Haltech Elite 750 + Plug'n'Play Adaptor Harness Kit – Nissan Patrol Y60 TB42E (Manual & Automatic)

The Elite 750 ECU is a compact, entry-level standalone ECU that brings high-end tuning capabilities to the TB42E-powered Nissan Patrol Y60. Paired with a Plug'n'Play adaptor harness, this package offers a straightforward upgrade from the factory ECU, ideal for performance tuning, turbo setups, or fuel system upgrades.

Backed by Haltech’s NSP calibration software, it delivers modern engine management functionality with user-friendly setup and advanced tuning options, suitable for both street and off-road performance builds.

Key Features

• Vehicle Compatibility:

  • Nissan Patrol/Safari Y60

  • Engine: TB42E

  • Transmission: Manual and automatic (no transmission control)

  • Note: Confirm ECU pinouts for rare configurations if unsure

• Included Components:

  • Haltech Elite 750 ECU

  • Injection molded Plug'n'Play Adaptor Harness

  • M14 x 1.5 Air Temp Sensor with plug and pins

  • Auxiliary I/O 16-Pin TYCO plug and pins

  • Waterproof USB Cap

  • USB Programming Cable

• Installation Notes:

  • Supports use of spare ignition outputs for custom direct-fire ignition conversion (6 individual coils)

  • No transmission shift programming or control included

ECU Specifications

• Internal 3-Bar MAP Sensor (200kPa / 29psi boost)

• 6 x Fuel Injection Outputs (Peak & Hold)

• 6 x Ignition Outputs

• 2 x Engine Position Inputs, 2 x Digital Inputs

• 5 x Digital Outputs, 2 x Analog Inputs

• 3 x Dedicated Inputs (TPS, Coolant Temp, Air Temp)

• USB & CAN Bus Connectivity

• IP67 Waterproof Case

• On-board Data Logging

• NSP Software for Windows

Core ECU Functions

• Flex Fuel Compatible (E85 ready via direct sensor input)

• Closed-Loop O2 Control and Idle Speed Control (BAC-type supported)

• Long-Term Learning for fuel, idle, and cam tuning

• Variable Cam Control (single cam sensor setups)

• Rotary Engine Injection Staging

• CAN support for Haltech Dashes and OBDII devices

• Wideband O2 and EGT input support (via CAN)

• Nitrous and Boost Control with 3D mapping

• Full per-cylinder fuel and ignition corrections

• Fully mappable with 32x32 resolution and advanced tuning logic

Emissions Disclaimer

This product is intended for off-road or motorsport use only and is not legal for road use in emission-controlled vehicles.
