The Elite 750 ECU delivers advanced tuning functionality in a compact and cost-effective package. Matched with a dedicated Plug'n'Play harness, this kit provides a seamless upgrade path for TB45E-powered Nissan Patrol Y60 and Y61 models. It's engineered for ease of installation and ideal for off-road performance upgrades, turbo conversions, and EFI refinement.
With full support from Haltech’s NSP tuning software, users benefit from extensive engine control features, CAN connectivity, and comprehensive calibration capabilities—all in a waterproof, motorsport-ready enclosure.
Key Features
-
Vehicle Compatibility:
-
Nissan Patrol/Safari Y60 & Y61
-
Engine: TB45E
-
Transmission: Manual or automatic (no transmission control functionality)
-
Note: Confirm pin compatibility for non-standard configurations
-
-

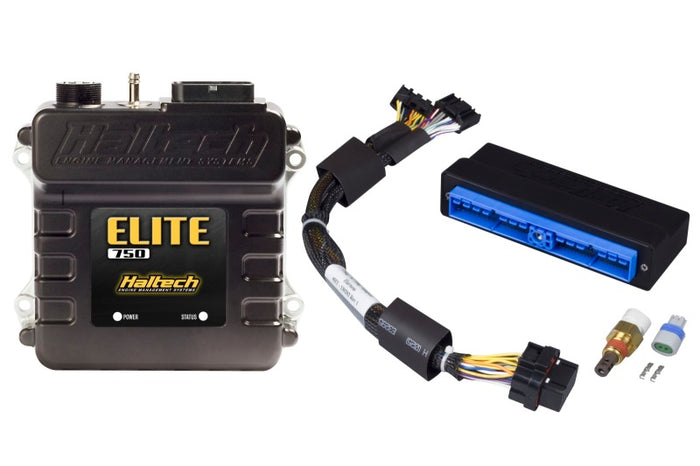

Included Components:
-
Haltech Elite 750 ECU
-
Injection-molded Plug'n'Play Adaptor Harness
-
M14 x 1.5 Air Temp Sensor with connector
-
Auxiliary I/O 16-Pin TYCO Plug and Pins
-
Waterproof USB Cap
-
USB Programming Cable
-
-
Installation Notes:
-
Distributor-to-coil-on-plug conversion supported via spare ignition outputs (requires custom wiring)
-
ECU Specifications
-
6 x Peak & Hold Fuel Injection Outputs
-
6 x Ignition Outputs
-
2 x Engine Position Inputs
-
2 x Digital Inputs, 5 x Digital Outputs
-
2 x Analog Voltage Inputs
-
3 x Dedicated Inputs (TPS, IAT, Coolant Temp)
-
Internal 3-Bar MAP Sensor (up to 29psi boost)
-
Up to 45 I/O Channels (via CAN)
-
IP67-Rated Case
-
USB Communication (Windows Only)
-
On-board Data Logging with NSP Software
Advanced Engine Functions
-
Flex Fuel Compatibility (E85 ready with sensor input)
-
Closed-Loop O2 Control and Idle Control (BAC-type only)
-
Auto-tuning (Long-Term Learning) for fuel, idle, and cam control
-
2 Injection Stages (Rotary engine support)
-
Variable Cam Control (single cam sensor engines)
-
Nitrous Control (wet/dry, multi-stage)
-
Boost Control (3D open-loop with custom axis tuning)
-
Individual Cylinder Tuning (3D corrections)
-
CAN Integration for dash displays, expansion modules, and OBDII diagnostics
-
Wideband O2 and EGT integration via CAN
Emissions Disclaimer
This product is intended for off-road or motorsport use only and is not legal for use on public roads or emission-controlled vehicles.
