Haltech Elite 750 + Plug'n'Play Adaptor Harness Kit – Nissan Patrol Y60 & Y61 TB45E (Manual & Automatic)

The Elite 750 ECU delivers advanced tuning functionality in a compact and cost-effective package. Matched with a dedicated Plug'n'Play harness, this kit provides a seamless upgrade path for TB45E-powered Nissan Patrol Y60 and Y61 models. It's engineered for ease of installation and ideal for off-road performance upgrades, turbo conversions, and EFI refinement.

With full support from Haltech’s NSP tuning software, users benefit from extensive engine control features, CAN connectivity, and comprehensive calibration capabilities—all in a waterproof, motorsport-ready enclosure.

Key Features

• Vehicle Compatibility:

  • Nissan Patrol/Safari Y60 & Y61

  • Engine: TB45E

  • Transmission: Manual or automatic (no transmission control functionality)

  • Note: Confirm pin compatibility for non-standard configurations

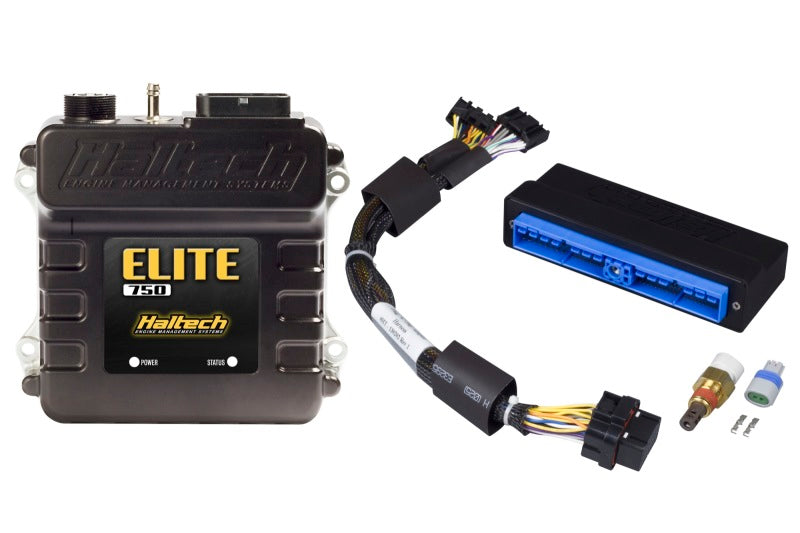

• Included Components:

  • Haltech Elite 750 ECU

  • Injection-molded Plug'n'Play Adaptor Harness

  • M14 x 1.5 Air Temp Sensor with connector

  • Auxiliary I/O 16-Pin TYCO Plug and Pins

  • Waterproof USB Cap

  • USB Programming Cable

• Installation Notes:

  • Distributor-to-coil-on-plug conversion supported via spare ignition outputs (requires custom wiring)

ECU Specifications

• 6 x Peak & Hold Fuel Injection Outputs

• 6 x Ignition Outputs

• 2 x Engine Position Inputs

• 2 x Digital Inputs, 5 x Digital Outputs

• 2 x Analog Voltage Inputs

• 3 x Dedicated Inputs (TPS, IAT, Coolant Temp)

• Internal 3-Bar MAP Sensor (up to 29psi boost)

• Up to 45 I/O Channels (via CAN)

• IP67-Rated Case

• USB Communication (Windows Only)

• On-board Data Logging with NSP Software

Advanced Engine Functions

• Flex Fuel Compatibility (E85 ready with sensor input)

• Closed-Loop O2 Control and Idle Control (BAC-type only)

• Auto-tuning (Long-Term Learning) for fuel, idle, and cam control

• 2 Injection Stages (Rotary engine support)

• Variable Cam Control (single cam sensor engines)

• Nitrous Control (wet/dry, multi-stage)

• Boost Control (3D open-loop with custom axis tuning)

• Individual Cylinder Tuning (3D corrections)

• CAN Integration for dash displays, expansion modules, and OBDII diagnostics

• Wideband O2 and EGT integration via CAN

Emissions Disclaimer

This product is intended for off-road or motorsport use only and is not legal for use on public roads or emission-controlled vehicles.
