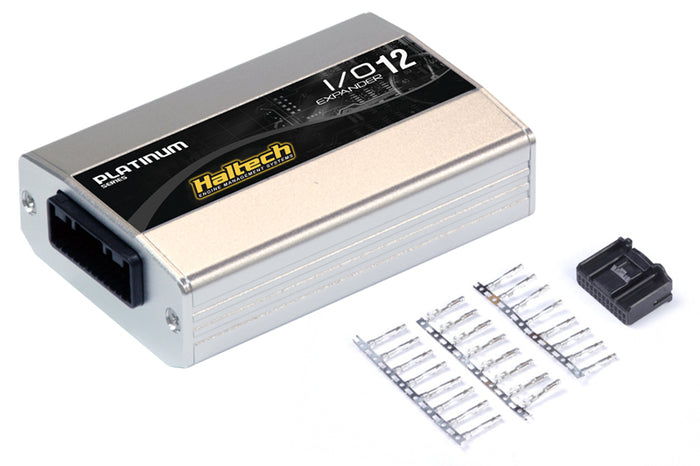

IO 12 Expander - 12 Channel with Plug & Pins Kit (CAN ID - Box A/Box B) by Haltech
As supplied this product is direct Plug 'n' Play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector or mutiple CAN device installation using an Elite 4 Port CAN HUB. If you are connecting this product with a Platinum Pro Plug-in, Sport or Sprint ECU please order a Haltech CAN Cable (8 pin Black Tyco to 8 pin Black Tyco) in a suitable length for your specific installation. If you are connecting this product with a multiple CAN device installation using a Platinum 3 or 6 port CAN HUB please order a Haltech CAN Cable (8 pin White Tyco to 8 pin White Tyco) in a suitable length for your specific installation. in a suitable length for your specific installation. Cables are available from 75mm (3") to 3600mm (144") Please see the product Quick Start Guide for further information on selecting the correct colour CAN cable for your specific installation.
Features
- Plug & Pins Kit
- 300mm CAN Cable
- Suits IO12 Box, WB1, WB2 & Emulator
- 4 Digital Pulsed Outputs (DPO)
- 4 Digital Pulsed Inputs (DPI)
- 4 Analogue Voltage Inputs (AVI)
Benefits
- Allows the user the ability to increase functionality of their Haltech ECU
- Fitted to all Platinum or Elite Series ECU's
Please Note: Combine two IO 12 Expanders with different CAN ID's (Box A or B) for up to 24 additional channels (subject to ECU compatibility)
Applications
- Universal
What's In The Box?
- 1 - IO 12 Expander
- 1 - CAN Cable DTM4 to 8-pin Tyco
- 1 - Plug & Pins Kit
- 1 - Quick Start Guide
Warranty
- Haltech Limited Warranty
