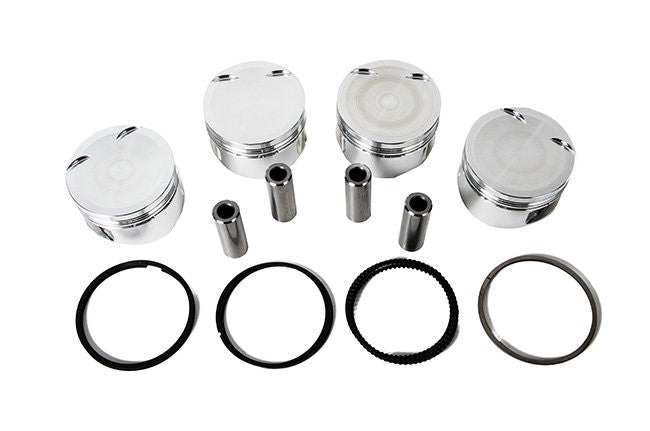

JE Pistons Hyundai 1.6L Gamma Turbo GDI Piston Kit – 77.00 Mm Bore – 1.099 In. CH, -8.20 CC
Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons
Specifications :
| Piston Series | JE Pistons |
|---|---|
| Cylinder Head | GAMMA GDI 1.6T |
| Bore Diameter | 77.00 MM |
| Piston Head Type | Dish |
| Compression Height | 1.099 IN |
| Piston Volume | -8.20 CC |
| Piston Material | 2618 |
| Piston Quantity | 4 |
| Forging Type | Round |
| Piston Average Weight | 249 GR |
| Ring Set Included | Yes |
| Top Compression Ring Thickness | 0.0400 IN |
| Second Compression Ring Thickness | 0.0480 IN |
| Oil Ring Thickness | 0.111 IN |
| Wrist Pin Outer Diameter | 0.787 IN |
| Wrist Pin Length | 2.250 IN |
| Wrist Pin Wall Thickness | 0.180 IN |
