Edelbrock Performer T.B.I. Intake Manifold For Chevrolet 305/350 Small-Block V8- 3704
Edelbrock Performer T.B.I. Intake Manifold For Chevrolet 305/350 Small-Block V8- 3704

Edelbrock Performer T.B.I. Intake Manifold For Chevrolet 305/350 Small-Block V8- 3704

Edelbrock Performer T.B.I. Intake Manifold For Chevrolet 305/350 Small-Block V8 Edelbrock Part # 3704 Performer T.B.I. intake...
Vendor: Edelbrock
SKU: EDE3704
Availability: Out Of Stock
Product Type: Intake Manifolds
$683.72
$683.72
Please hurry! Only 0 left in stock
Subtotal: $683.72
10 customers are viewing this product

Description
Description
x

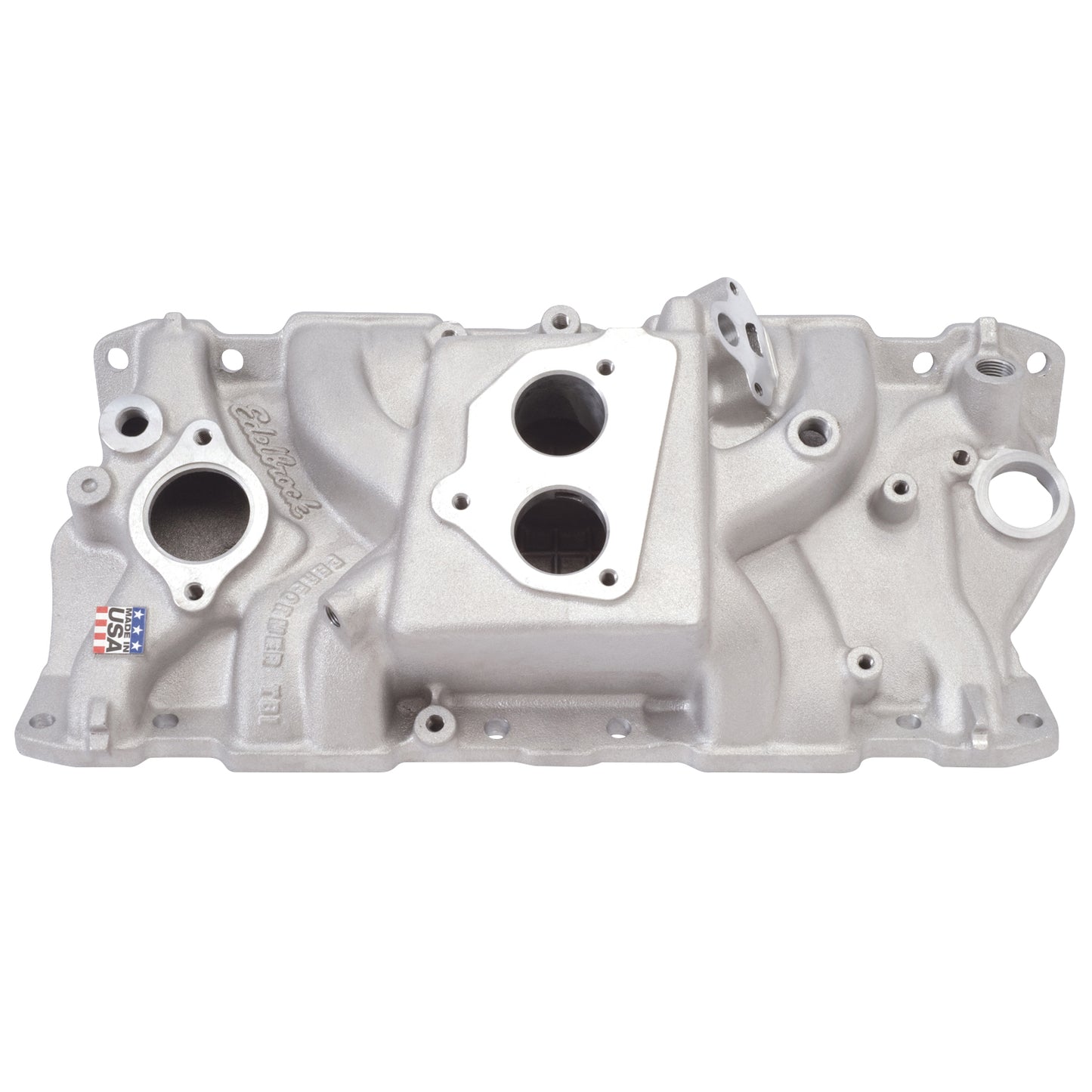

Edelbrock Performer T.B.I. Intake Manifold For Chevrolet 305/350 Small-Block V8

Edelbrock Part # 3704 Performer T.B.I. intake manifold is designed for 1987-95 305/350 c.i.d. 5.0/5.7L Chevy throttle body injected (T.B.I.) engines. Accepts all OEM equipment and small-bore (1-11/16") throttle body injectors only. Will not fit Caprice or Buick and Cadillac "B" bodies.

PDF-Installation Instructions

SPECS

Manufacturer Edelbrock
Application Application Specific
UPC 00085347037049
Series Performer
Gasket Or Seal Included No
Vehicle Model Chevrolet
Availability Note Available to Order
Warranty 12 Months
Ec Basic Operating Rpm Range Idle-5500 RPM
Emissions Code
Hazardous Materials Warning WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes
  • Use stock Throttle Body Injection unit.; Recommended intake gasket: GM #10159409.; Manifold height: A-3.70", B-5.10"; TBI pad height: 4.40", .250" taller than stock.; Port exit dimensions: 1.13" x 1.87".; Made in the USA; Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.; Sealant must be used on intake bolt threads if the threads extend into lifter valley or coolant passage.; Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.; NPT/Pipe thread fittings require the use of Teflon tape or paste on threads to ensure proper seal.; DO NOT OVERTIGHTEN NPT/Pipe fittings, this may cause the aluminum to crack around the fitting boss. NPT/Pipe thread is a tapered thread.; Even though manifolds are compatible with EGR systems, this does not mean they are legal for use on emissions controlled vehicles. Check local laws for legality.; Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.
Finish Satin
Material Aluminum
Rear Maximum Height 5.100 in
Single Or Dual Plane Type Dual
