  • Edelbrock Stg 1 SC 12-19 Subaru BRZ/Scion FR-S/Toyota 86 2.0L W/O Tune - 15560
-29%
Edelbrock Stg 1 SC 12-19 Subaru BRZ/Scion FR-S/Toyota 86 2.0L W/O Tune - 15560 Edelbrock
Click to zoom in
Load image into Gallery viewer, Edelbrock Stg 1 SC 12-19 Subaru BRZ/Scion FR-S/Toyota 86 2.0L W/O Tune - 15560 Edelbrock

Edelbrock Stg 1 SC 12-19 Subaru BRZ/Scion FR-S/Toyota 86 2.0L W/O Tune - 15560

2 sold in last 8 hours
Edelbrock
EDE15560
In stock
Superchargers
$12,646.68 $8,932.09
Edelbrock Stage 1 Street Supercharger System part #15560 (No Tuner) for 2012-19 Scion FR-S, BRZ, or Toyota GT86. The Edelbrock Stage 1 Street Supercharger System part #15560 (No Tuner) for...

Edelbrock Stg 1 SC 12-19 Subaru BRZ/Scion FR-S/Toyota 86 2.0L W/O Tune - 15560
Description

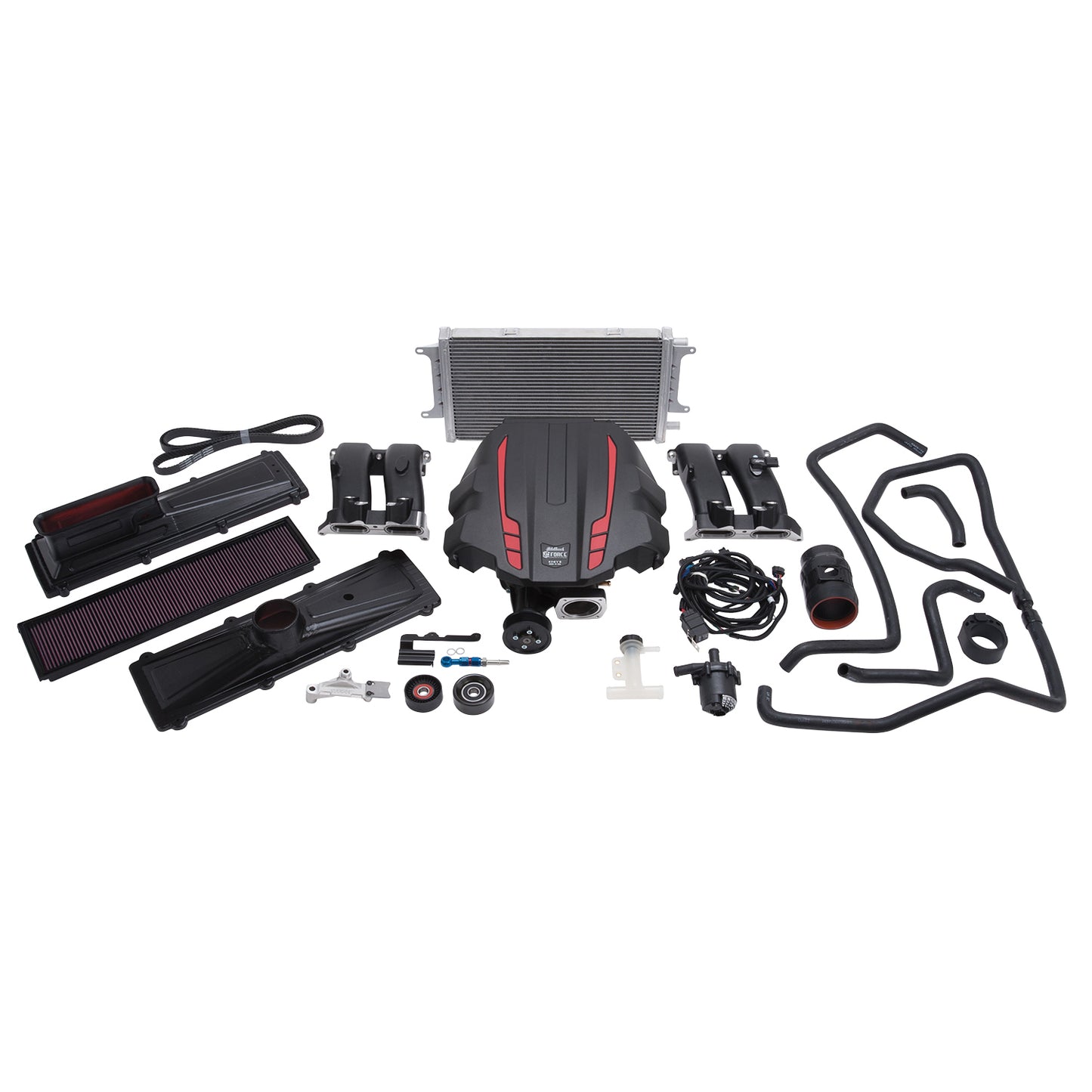

Edelbrock Stage 1 Street Supercharger System part #15560 (No Tuner) for 2012-19 Scion FR-S, BRZ, or Toyota GT86.

The Edelbrock Stage 1 Street Supercharger System part #15560 (No Tuner) for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. This Edelbrock Supercharger System is designed exclusively for the FA20/4U-GSE engine. It's unique inverted design allows for maximum flow, while retaining great daily driving characteristics. It has been designed from the ground-up and utilizes the Eaton 1320 TVS rotor assembly for maximum efficiency in a compact package. As with all Edelbrock superchargers, this system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. To cool the incoming air, is a large air-to-water intercooler and heat exchanger. All of these features help the Edelbrock deliver dramatically improved performance, especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. Lastly, the supercharger assembly is finished with a durable black powder coating with red accents for a unique look that will let everybody know your car is Edelbrock powered. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

JPG-Installation Instructions

PDF-Installation Instructions

PDF-Material Safety Data Sheet

SPECS

Manufacturer Edelbrock
Application Application Specific
UPC 00085347155606
System Type Stage 1 - Street System
Vehicle Model FRS/BRZ/FT86
Housing Material Cast Aluminum
Gasket Or Seal Included Yes
Quantity Kit
Oil Capacity 125 mL
Center Housing Cooling Type Intercooler
Internal Step Up Yes
Mounting Bracket Included Yes
Outside Pulley Diameter 3.25 in
Availability Note Available to Order
Warranty 36 Months
Emissions Code

 EO Number: D-215-93
Hazardous Materials Warning WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Installation Notes
  • Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting.; Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada.
Finish Black Powder Coated
Maximum Boost Pressure 9
Pulley Belt Width 6-Rib
Universal Or Specific Fit Specific
