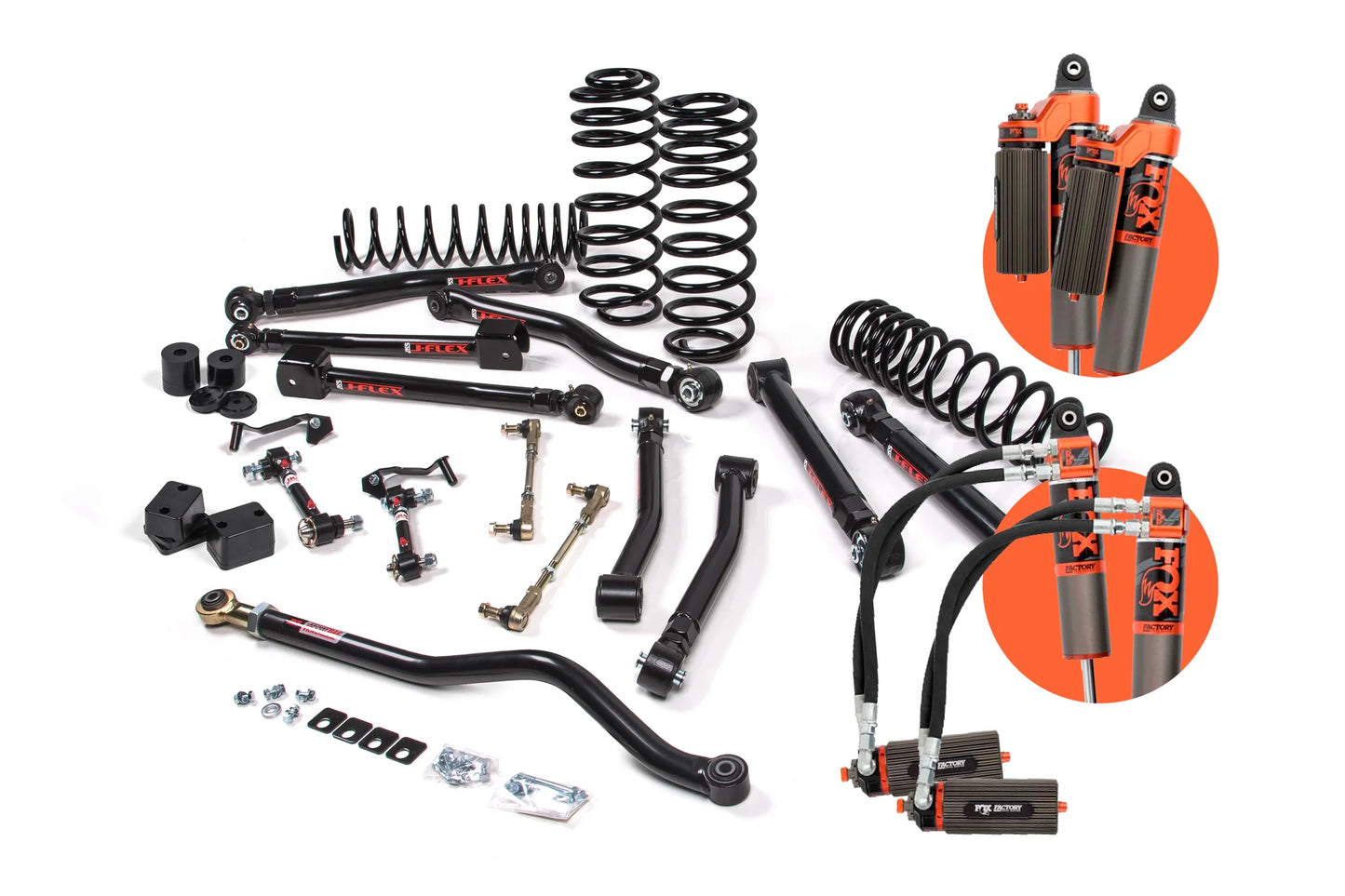

JKS Jeep JL J-Krawl 3in 2Dr w/Fox 2.0 Performance Shocks HD Rate Coils
Click to zoom in
Load image into Gallery viewer, JKS Jeep JL J-Krawl 3in 2Dr w/Fox 2.0 Performance Shocks HD Rate Coils

JKS Jeep JL J-Krawl 3in 2Dr w/Fox 2.0 Performance Shocks HD Rate Coils

2 sold in last 8 hours
JKS Manufacturing
JKSJSPEC148KFP
Out of stock
Lift Kits
$4,616.00 $4,062.08
JKS Jeep JL J-Krawl 3in 2Dr w/Fox 2.0 Performance Shocks HD Rate Coils Features & Benefits Front/Rear Dual Rate Coil Springs (standard or HD) designed to great ride quality across...

JKS Jeep JL J-Krawl 3in 2Dr w/Fox 2.0 Performance Shocks HD Rate Coils
Description

JKS Jeep JL J-Krawl 3in 2Dr w/Fox 2.0 Performance Shocks HD Rate Coils

Features & Benefits

  • Front/Rear Dual Rate Coil Springs (standard or HD) designed to great ride quality across any terrain.
  • Front/Rear FOX Shocks specifically valved for this suspension system for improved performance on and off-road.
  • Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
  • Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
  • Front/Rear Bump Stop Extensions to properly limit suspension up travel.
  • Front/Rear J-Flex Upper Control Arms to add strength and adjustability.
  • Front/Rear J-Flex Lower Control Arms to add strength and adjustability.

  Description

Turn your Jeep Wrangler JL into a serious off road rig with a JKS J-Krawl 3.5" lift kit. Designed for maximum articulation and adjustability, the complete suspension system includes dual rate coil springs, adjustable front track bar, rear track bar bracket and tuned FOX shocks. The heart of the J-Krawl design is a set of J-Flex upper and lower control arms and sway bar Quicker disconnects. These systems build off Jeep’s factory suspension mounting points and upgrades to front and rear, upper and lower J-Flex adjustable control arms for maximum articulation along with more strength for trails and rock crawling brawn along with adjustability to dial in front caster, rear pinion and overall vehicle wheelbase. In addition to eight high strength adjustable control arms, the J-Krawl system features your selection of Fox 2.0 PS, 2.5 PES, or 3.0 FRS Internal Bypass shocks to maximize travel and performance. An aftermarket front driveshaft is strongly recommended due to additional travel capable.

  Install Help

Install Guide

Difficulty: Moderately Easy | Time: 4-6 hrs

  Tire Specs

Rubicon Models (all kits)

Tire: 37x12.50

Wheel: 17x9, 18x9, 20x9

Backspacing: 5"


Non-Rubicon Models (all kits)

Tire: 35x12.50

Wheel: 17x9, 18x9, 20x9

Backspacing: 5"



Other tire/wheel sizes can be used, however may require additional modifications.

  Important Notes

  • Factory wheels cannot be reinstalled without wheel spacers
  • HD front springs recommended for applications with aftermarket winch/bumper combo
  • HD rear springs recommended for applications with rear mounted full size spare tire
  • Front aftermarket driveshaft strongly recommended due to additional travel capability
  • Rear aftermarket driveshaft recommended for 2 Door models
  • Shock extension brackets can be used on Rubicon models with stock FOX 2.5 shocks, however this will limit suspension down travel slightly.

  In the Box

In the box for JSPEC147KFP:

  • FOX98524179(x2): 18-ON Jeep JL Front, PS, 2.0, IFP, 10.6", 3.5-4" Lift
  • FOX98524180(x2): 18-ON Jeep JL Rear, PS, 2.0, IFP, 11.6", 3.5-4" Lift
  • JKS1616(x1): 2018+ Jeep JL/JT Adjustable Front UCA
  • JKS1625(x1): Jeep JL Front Lower J-Flex Control Arm Kit
  • JKS1661(x1): JL Rear Adjustable LCA
  • JKS1666(x1): 2018-20 Jeep JL/JK Rear Adjustable UCA
  • JSPEC1251(x1): JL 2.5in Front Coil Spring Kit - STD
  • JSPEC1259(x1): JL 2.5in Rear Coil Spring Kit - STD
  • JSPEC1312(x1): 2018-2020 Jeep Wrangler JL J-Krawl Main Box Kit
