PureFlow AirDog II-5G 04.5-18 Dodge 24V 6.7L Cummins DF-220-5G Fuel Pump - A7SABD529
PureFlow AirDog II-5G 04.5-18 Dodge Cummins DF-220-5G Fuel Pump Beginning with the 2005 model years, Dodge opted...
- $1,092.88
$1,866.84- $1,092.88
- Unit price
- per
Please hurry! Only 5 left in stock
Subtotal:
$1,092.88
10 customers are viewing this product
Couldn't load pickup availability
Description
xPureFlow AirDog II-5G 04.5-18 Dodge Cummins DF-220-5G Fuel Pump
Beginning with the 2005 model years, Dodge opted to move the fuel lift pump from being mounted in the engine bay to inside of the fuel tank basket to help avoid the lift pump failures that had plagued them since 1998.5 model years. Overall, it was a positive move on their part as failures were reduced, but it was also quickly determined that especially for those looking to increase the horsepower of their trucks, even a little bit, this pump was completely inadequate. And to make matters worse, this new positioning of the pump inside of the fuel tank made upgrading that much more difficult. Fortunately, AirDog has a complete system that includes all of the components you'll need to make sure you'll never have to worry about fuel pressure again!
The AirDog II-5G is an all in one premium fuel pump and filtration system for your 2005-2018 Cummins diesel. This system removes water, particulates, and entrained air from the diesel fuel. The entrained air that is separated from the fuel is returned to the tank through a small return fitting. The fuel is delivered to the engine at the correct pressure and flow rate to meet the demands of the engine under all operating conditions.
The AirDogII-5G DF-220 systems feature a built in adjustible diaphragm pressure regulator. All AirDog II-5G systems include a complete installation kit. The AirDog II-5G, for this particular application, is preset at 17 psi from the factory for a stock application. The regulator is adjustable up to 55 PSI so you can fine tune the system to perfectly match up to your current and future performance upgrades.
HOW IT WORKS:
The AirDog II-5G DF-220 draws fuel through a 5/8” suction line to reduce the risk of cavitation at the pump. The fuel is then drawn through the water separator where 92% of water is removed per SAE spec 1488. It is then pressurized through a Gerotor pump and sent to the 2 micron fuel filter before it is sent to the injection pump. The air from aerated fuel, due to tank sloshing and engine return lines, is separated and sent back to the tank through the 3/8” return fitting. The excess fuel that the engine does not use is recirculated through the diaphragm regulator back to the suction side of the p
SPECIFICATIONS
- SKUPF-A7SABD529
- MANUFACTURERAirDog | PureFlow Technologies
- MPNA7SABD529
MANUFACTURING:
- PureFlow AirDog products are manufactured in Shelbyville Indiana by a team of skilled workers with unsurpassed attention to detail and using the most stringent quality assurance.

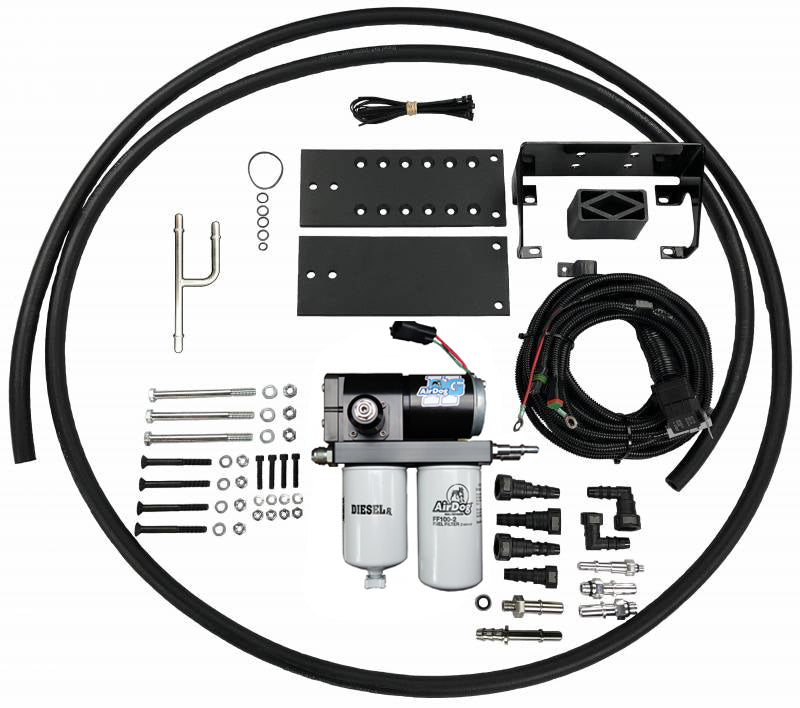

KIT CONTENTS:
- (1) AirDog II-5G DF-220
- (1) AirDog II Bracket
- (1) Mounting Hardware Kit
- (1) Frame Bracket
- (1) Wiring Harness
- (1) Bundle of Plastic Ties
- (1) 5/8” High Flow Suction Tube
- (1) Spacer
- (1) 14ft of Fuel Line
- (1) 7ft of 5/8” Fuel Line
- (1) 1/2” Straight Hose Quick Connect Fitting
- (1) 1/2" 90 Degree Hose Quick Connect Fitting
- (1) 3/8” 90 Degree Hose Quick Connect Fitting
- (1) 12mm X 1/2” male SAE J2044 Fitting
- (1) Sealing Washer (installs on WAP102 fitting)
- (1) 1/2” Male J2004 Quick Connect x 3/4-16” UNF
- (1) 3/8” Male J2004 Quick Connect x 7/16” UNF
- (2) 3/4-16 ORB Male to -10 JIC Female Fitting
- (2) -10 JIC Male to 5/8” Barb
- (1) Customer Service Oring Replacement Kit
FEATURES & BENEFITS:
- Supports 800+ horsepower (if you have less horsepower than this, consider an AirDog 100 or 165)
- Flows 220 Gallons Per Hour
- Preset at 17 PSI
- Variable fuel pressure
- 3/4-16 o-ring boss (-8) inlet and outlet ports
- 7/16-20 ORB return port (-4)
- 4 bearing design with intermediate shaft to reduce pump noise and increase reliability
- Low flow fuel return to reduce aeration in the tank
- Demand Flow: only feeds as much fuel as what the engine needs
- Dual feed that feeds fuel to both sides of the Gerotor Pump to decrease cavitation
