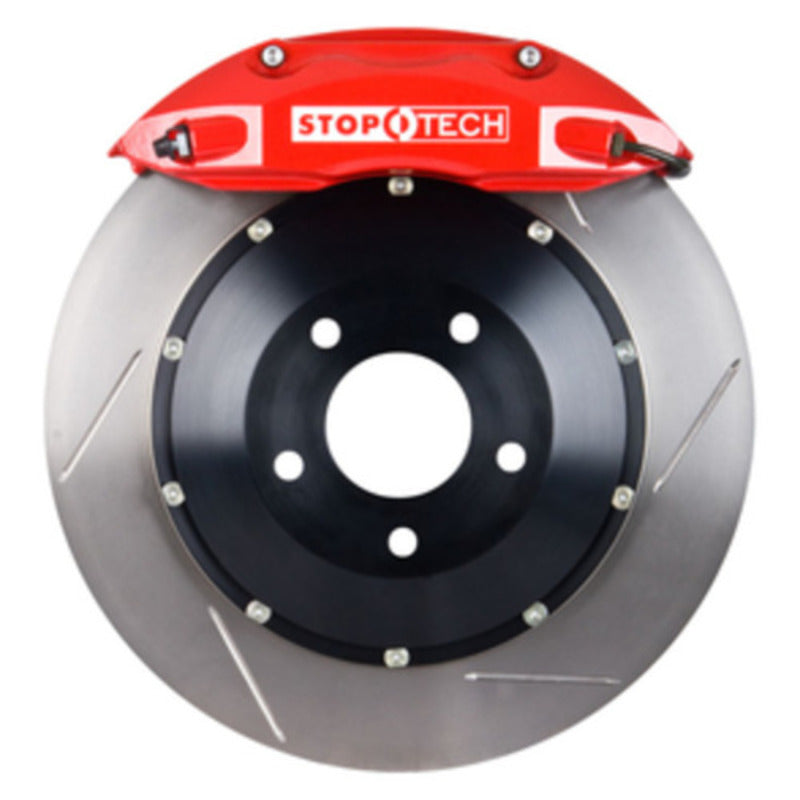

STOPTECH 91-05 ACURA NSX REAR BBK W/RED ST-40/10 CALIPERS SLOTTED 328X28MM ROTORS, 83.055.0043.71

2 sold in last 8 hours
Stoptech
STO83.055.0043.71
In stock
Big Brake Kits
$5,632.07 $5,068.86
A StopTech Big Brake Kit represents the ultimate high performance brake upgrades and gives vehicles that supercar look and feel.StopTech Big Brake Kits exceed stock performance in two key areas:...

STOPTECH 91-05 ACURA NSX REAR BBK W/RED ST-40/10 CALIPERS SLOTTED 328X28MM ROTORS, 83.055.0043.71
A StopTech Big Brake Kit represents the ultimate high performance brake upgrades and gives vehicles that supercar look and feel.

StopTech Big Brake Kits exceed stock performance in two key areas: First, larger rotors increase heat capacity, allowing a driver to brake harder stop-after-stop with reduced chance of fade. Second, stiffer calipers and stainless steel lines reduce system compliance, providing consistent pedal feel and confidence-inspiring responsiveness.

The key, however, is to increase heat capacity and reduce compliance without upsetting a vehicle’s stock front-to-rear brake torque ratio. That is why StopTech developed the Balanced Brake Upgrade design philosophy, which precisely apportions front and rear braking resources while factoring in vehicle weight transfer under braking.

In contrast, a brake upgrade that adds too much front torque (as many do), will reduce your car’s ability to maximize the traction available from all four tires, robbing you of performance. In addition, a system that uses too many pistons or pistons that are too large will make the brake pedal much more difficult to modulate, limiting a driver’s control of brake input.

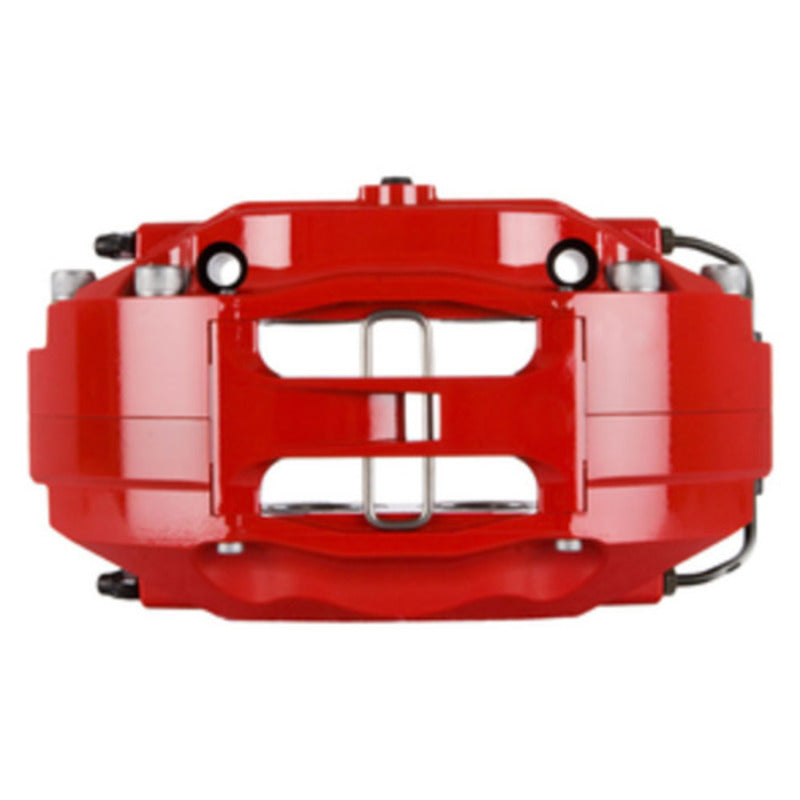

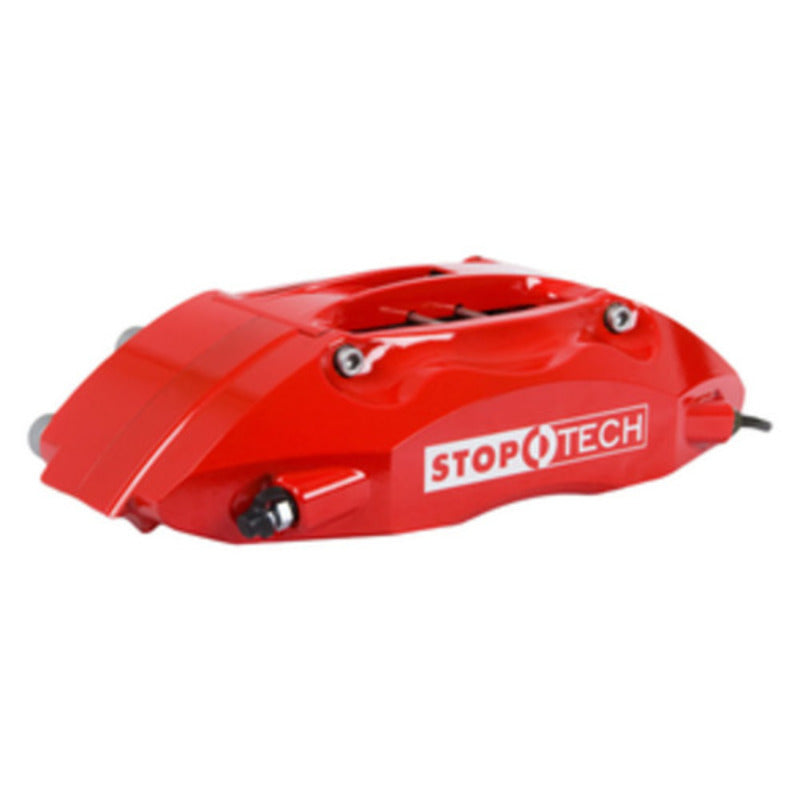

The Stiffest, Fully Forged 2-piece, Opposed Piston Calipers

StopTech 2-piece calipers have the lowest amount of flex and deflection among 25 of the leading caliper models (including some monoblocks) from well-known manufacturers. This is accomplished using StopTech’s patented bolt-in bridge, which is strong enough to stop distortion without sacrificing cooling through the top of the caliper.

The standard StopTech caliper finish is a glossy high temperature paint available in one of six different colors – red, black, silver, blue, yellow and gold. Trophy Sport and Trophy Race Big Brake Kits use weight-optimized STR calipers finished with a deep natural anodized coating that resists fading and discoloration at extreme temperatures.

Less vibration

Less Noise

Better pedal feel under extreme braking conditions

Faster braking response

Less pad taper

Patented AeroRotors and AeroHats that offer up to 80% greater airflow

StopTech has developed several design innovations to improve rotor airflow. The patented 2-piece AeroRotors push more air thanks to curved, airfoil-shaped vanes and an air channel that widens at the trailing edge of the vanes. StopTech aluminum AeroHats are lighter, and feature directional stand-offs between the rotor and mounting hat that increase airflow to the (hotter) outside face of the rotor by over 15%.

Specifically engineered and patented AeroVanes for optimum cooling

Optimized to provide even performance and consistent feedback

Longer pad and rotor life

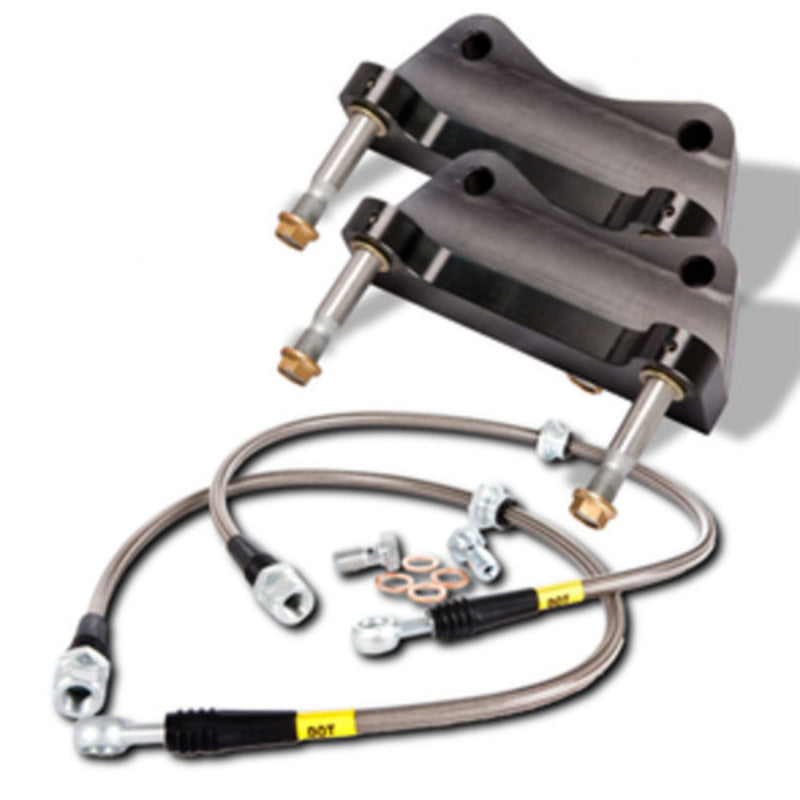

Hard Anodized 6061-T6 Billet aluminum Mounting Brackets with Stainless Steel Studs

Application-specific hardware that is stronger than most competitors, with studs instead of the more commonly used bolts and hard anodized aluminum billet composition.

Hard anodized billet aluminum mounting brackets

Stainless steel studs secured with set screws for strength and durability

Fully machined aluminum or steel that is precise and strong

Application specific design for precise and proper fitment

All necessary hardware for easy installation

StopTech Stainless Steel Brake Line Kits

Braided stainless steel lines reduce system compliance and improve brake pedal feel and modulation. StopTech’s Stainless Steel Brake Lines are D.O.T. compliant and designed to fit your vehicle.

Stainless steel braiding for lower compliance and extra protection

Provides quicker response

Firmer pedal feel

A variety of fittings for hundreds of applications

All necessary brackets and fasteners for easy installation

Better brake modulation

D.O.T. compliant

StopTech Street Performance Brake Pads

StopTech Street Performance Brake Pads are included in all Big Brake Kits besides the track-only Trophy Race Big Brake Kits. StopTech Street Performance Pads are intended for high performance street driving as well as light duty track use.

Aggressive pad for high performance street driving

Para-aramid composites provide linear response regardless of pad temperature

100% positive molded for uniform friction material density

Low dust formulation is rotor friendly and leaves wheels cleaner

Scorched to raise initial cold effectiveness and ease bed-in

100% Asbestos-free formulas

WARNING: This product can expose you to chemicals, which is known to the State of California to Cause Cancer, Birth Defects, And Other Reproductive Harm.

Specifications for StopTech 91-05 Acura NSX Rear BBK w/Red ST-40/10 Calipers Slotted 328x28mm Rotors
Rotor Size - 328x28mm
Caliper Color - Red
Caliper Style - 4-Piston
Position - Rear

Vehicle Fitment for StopTech 91-05 Acura NSX Rear BBK w/Red ST-40/10 Calipers Slotted 328x28mm Rotors:
+ Acura NSX
