Wilwood 07-18 Chevy Silverado/GMC Sierra Aero6-DM Front Brake Kit - D&S - Red
AERO6-DM Direct-Mount Truck Front Brake Kit AERODM Six Piston calipers were designed for the specific purpose of...
- $2,206.72
$2,471.52- $2,206.72
- Unit price
- per
Please hurry! Only 4 left in stock
Subtotal:
$2,206.72
10 customers are viewing this product
Couldn't load pickup availability
Description
xAERO6-DM Direct-Mount Truck Front Brake Kit
AERODM Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.38" diameter rotors provide maximum cooling for sustained high heat durability.
| Kit Summary | |
|---|---|
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 6 - Red Powder Coat |
| Rotor Diameter: | 13.38 |
| Min Wheel Diameter Req'd*: | 17 |

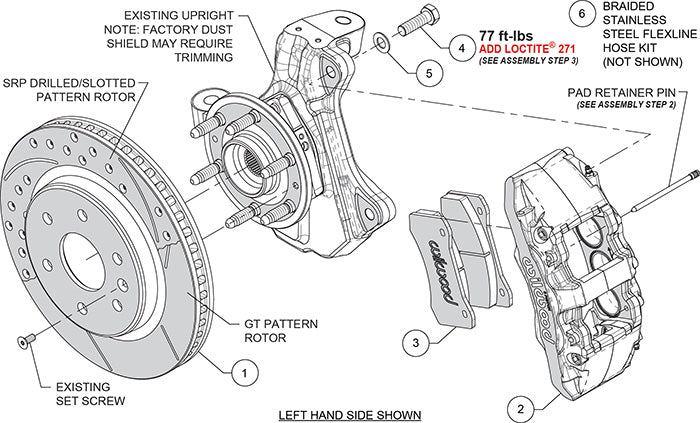

| *This Brake Kit may fit 17-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. | |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-16824-RD |
| Right Hand - Part No: | 120-16823-RD |
| Type: | AERODM |
| Finish Color: | Red Powder Coat |
| Piston Count: | 6 |
| Piston 1 Bore (in): | 1.75 |
| Piston 2 Bore (in): | 1.62 |
| Piston 3 Bore (in): | 1.62 |
| Piston Area (In²): | 6.52 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 6617 |
| Brake Pad Area (In²): | 11.1 |
| Brake Pad Volume (In³): | 5.2 |
| Pad Compound: | Polymatrix Q |
 AERODM Caliper - Red Powder Coat
|
|
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-16513-BK |
| Right Hand - Part No: | 160-16512-BK |
| Type: | SRP Drilled Rotor & Hat |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 13.38 |
| Width (in): | 1.25 |
| Vane Count: | 48 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | Yes |
 SRP Drilled Rotor & Hat - Iron - Black Electro Coat
|
|
