Off-road environments are filled with dust, mud, and water crossings—none of which mix well with a low-mounted intake. The Borne Off-Road MMAI-RPTR-17NWBK Snorkel brings a rugged, trail-proven solution for 2017–2020 Ford Raptor owners who demand better airflow and cleaner engine performance. By raising the air intake over 24 inches above the factory location, this snorkel captures cleaner, cooler air from roof height, giving your Raptor an edge when tackling dusty convoys, deep water crossings, or rugged terrain.
Key Features
-
Fits 2017–2020 Ford Raptor 3.5L EcoBoost
-
Compatible with Stock or Mishimoto Intake Systems
-
UV-Resistant Rotational-Molded Polyethylene Tube
-

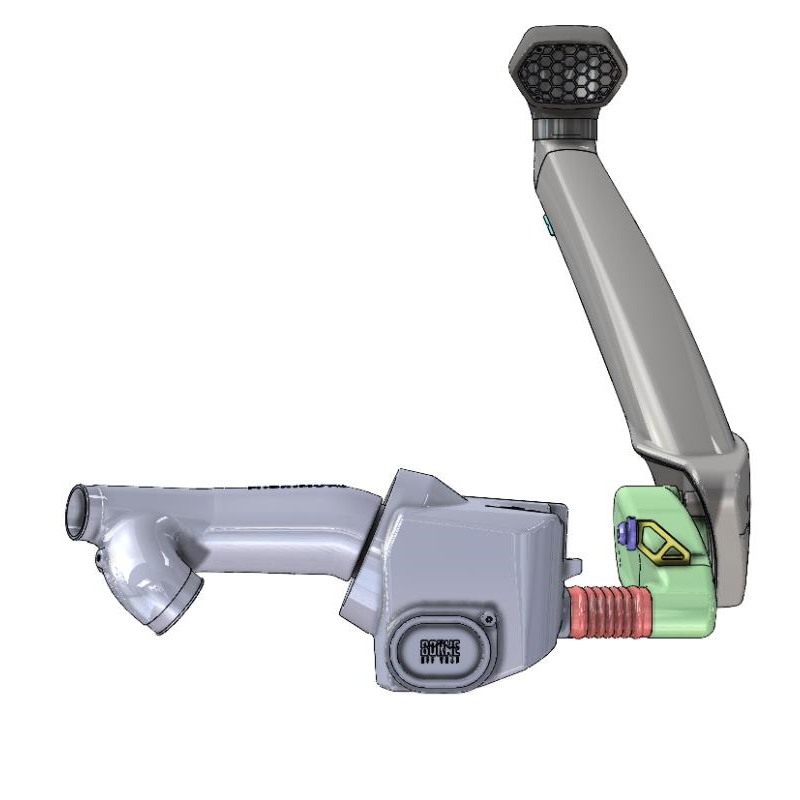

CAD-Modeled and Flow-Bench Tested for Maximum Efficiency
-
Removable 6-Inch Inlet Accepts Optional Pre-Filters
-
Raises Intake Inlet Over 24 Inches for Cleaner Air
-
Improves Induction Sound
-
Heavy-Duty 2.5mm Steel Mounting Brackets
-
Powder Coated Black with Drainage Ports to Prevent Water Entry
-
Patent US No. D971,262 S
-
Backed by the Borne Off-Road Lifetime Warranty
Vehicle Fitment
-
Ford F-150 Raptor 3.5L EcoBoost (P552 Chassis)
-
Model Years: 2017, 2018, 2019, 2020
Note: This product is designed exclusively for the Raptor trim and is not compatible with other F-150 models due to body panel differences.

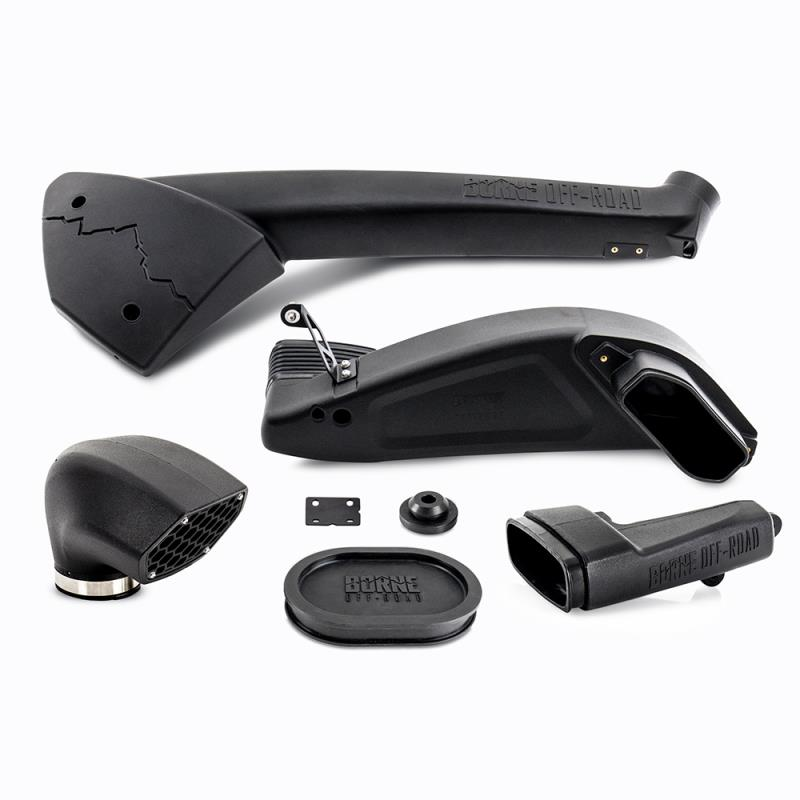

What’s in the Box
-
(1) Borne Off-Road Snorkel Tube
-
(1) Borne Off-Road Fender Tube
-
(1) Snorkel Inlet with Steel Mesh Screen
-
(1) Snorkel-to-Airbox Adapter + Rubber Duct
-
(1) Fender Tube Mounting Bracket
-
(1) Snorkel Tube Mounting Bracket
-
(1) Fender Bracket Peg & Grommet
-
(1) Airbox Inlet Plug (Grille Duct Block-Off)
-
(1) 4.25” T-Bolt Clamp
-
Complete Mounting Hardware
-
Borne Off-Road Lifetime Warranty
Installation Notes
This kit requires three small modifications for proper installation:
-
Lower Airbox Cut-Out (if using OEM airbox)
-
Minor Inner A-Pillar Trimming (not visible externally)
-
Trimming Behind OEM Fender Grille (grille still reinstallable)
Installation is supported by a detailed PDF guide and video tutorial, ensuring DIYers and pros can install with confidence.
Caution: This snorkel does not increase your water fording limit. Other vehicle systems may require upgrades to safely cross deep water.
Whether you're climbing rocky trails or blasting through sand, the Borne Off-Road MMAI-RPTR-17NWBK Snorkel is a performance-enhancing upgrade that lets your Ford Raptor breathe better under pressure. Built tough with rotational-molded construction and backed by a lifetime warranty, this snorkel is a serious tool for serious off-roaders. Pair it with a Mishimoto Intake for the ultimate combination of flow, protection, and sound. Shop now at Elite Race Fab—your go-to source for off-road performance parts.
