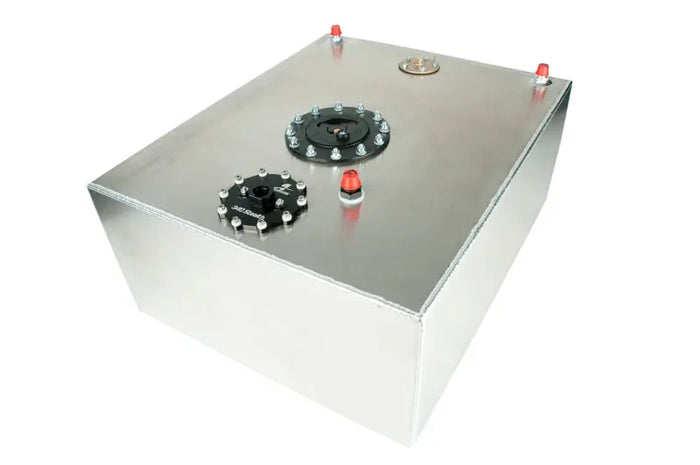

Aeromotive Stealth Fuel Cell, 20 Gallon P/N 18665

P/N 18665 340 Stealth Cell – 20 Gal
340 Stealth Performance In a Baffled Fuel Cell

20-gallon Street/Strip Fuel Cell with 340 Stealth Pump, aircraft filler cap, AN-08 ORB outlet port, AN-08 male flare baffled return and dual, roll-over protected AN-08 vents. This is the same fuel cell design, but with larger capacity of 20-gal vs 6-gal used in the Ford Cobra Jet, Chevy COPO Camaro and many of the MOPAR Drag Pack cars.

• 340 Fuel Pump (internal) – P/N 11140
• 20 Gallon Capacity
• Baffled design keeps fuel at the pump inlet
• AN-08 ORB Outlet Port
• AN-08 Male Return Line Provision
• (2) AN-08 Male Vents with Rollover Valves
• Standard 12-Bolt Flush Mount Lid Assembly
• Integrated 0-90-ohm fuel level sending unit
• Natural Aluminum Finish
• Supports up to:
  EFI – 700hp Forced Induction
  EFI – 850hp Naturally Aspirated
  Carbureted – 850hp Forced Induction
  Carbureted – 1000hp Naturally Aspirated
• Dimensions: 24”L x 20”W x 10”H

Need help choosing the right regulator, call our tech lines at (913) 647-7300 Option 3.

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Mounting Configuration: In Tank
