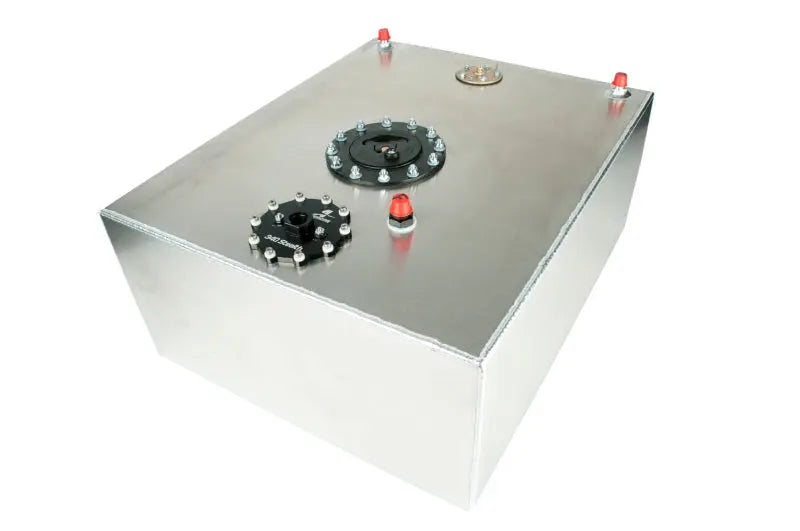

Aeromotive 20 Gallon Stealth Fuel Cell 340 LPH Pump - 18665

Key Features & Specs:

• 20-gallon baffled performance fuel cell
• Integrated 340 LPH Stealth in-tank fuel pump (P/N 11540)
• Built-in pre-pump fuel filter
• Internal baffling helps prevent fuel starvation
• AN-08 ORB outlet port
• AN-08 male return line provision
• Dual AN-08 male vent ports with rollover valves
• Standard 12-bolt flush mount lid assembly
• Aircraft-style filler cap
• Integrated 0–90 ohm fuel level sending unit
• Natural aluminum fuel cell construction
• Dimensions: 24" L x 20" W x 10" H
• Supports up to:
• EFI: 700 HP forced induction
• EFI: 850 HP naturally aspirated
• Carbureted: 850 HP forced induction
• Carbureted: 1000 HP naturally aspirated

The Aeromotive 18665 20-Gallon Stealth Fuel Cell is engineered for high-performance street and strip vehicles requiring reliable fuel delivery and integrated fuel system components. This fuel cell features a built-in 340 LPH Stealth in-tank fuel pump and pre-pump filter, delivering consistent fuel flow for EFI or carbureted engines. The baffled internal design helps keep fuel at the pump inlet during acceleration, cornering, and braking to prevent fuel starvation in performance driving conditions. Constructed with a natural aluminum finish, the cell includes a standard 12-bolt flush mount lid assembly with an aircraft-style filler cap, AN-08 ORB outlet port, AN-08 male return line provision, and dual AN-08 rollover-protected vent fittings. An integrated 0–90 ohm fuel level sending unit allows accurate fuel level monitoring for compatible gauges.
